SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Nit


13 - Lower Unit And Tube


14 - Air Flow And Reservoir


15 - Ice Maker

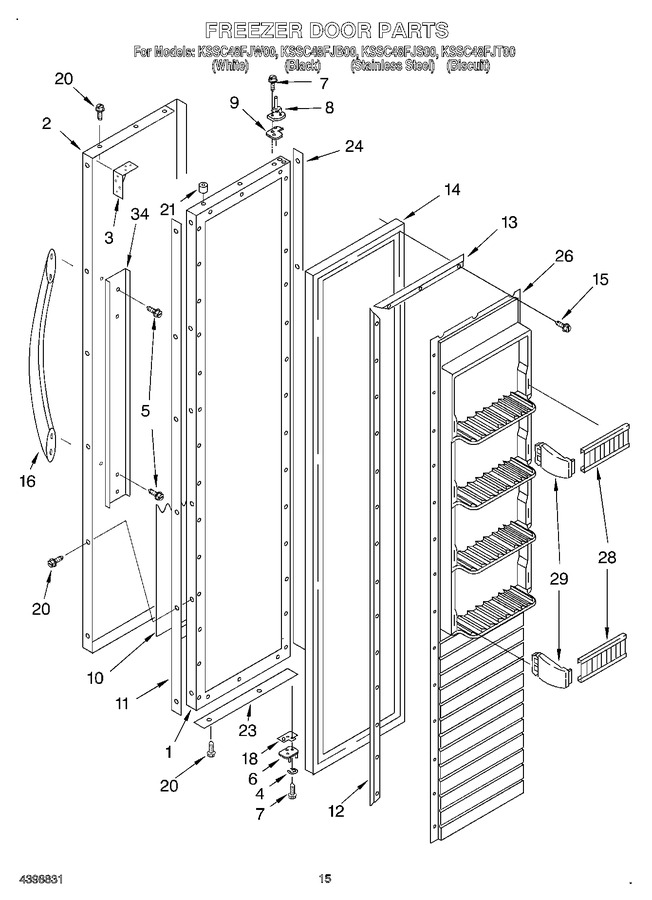

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003878		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2006776		Skin, Door (stainless Steel)		Appelez-nous	-
2	2209103T		Skin, Door (biscuit)		Appelez-nous	-
2	2209103W		Skin, Door (white)		Appelez-nous	-
2	2209103B		Skin, Door (black)		Appelez-nous	-
3	2004447		Brace, Door Corner		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
5	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2005329		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	2005323		Filler, Door		Appelez-nous	-
11	2005330		Spacer, Handle Side		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2188319)			Immediately	$ 316.41
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2005290		Handle, Door (stainless Steel)				$ 130.36
16	2209095B		Handle, Door (black)		Appelez-nous	-
16	2209095T		Handle, Door (biscuit)		Appelez-nous	-
16	2209095W		Handle, Door (white)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP488729		Screw (stainless Steel)   (Replaces: 487052)			Immediately	$ 7.79
20	3400877		Screw (biscuit)		Appelez-nous	-
20	3400878		Screw (black)		Appelez-nous	-
20	2001208		Screw (white)		Appelez-nous	-
21	2005433		Spacer, Top				$ 22.22
23	WP2257333		Spacer, Door Bottom   (Replaces: 2004933)				$ 134.21
24	2005030		Spacer, Hinge Side		Appelez-nous	-
26	2209032		Panel, Interior Door		Appelez-nous	-
28	2195934		Shelf Bin (4)				$ 46.59
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
34	2209202		Plate, Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
