Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61928 Heater Assembly 208v Special Order $ 158.35

1 61927 Heater Assembly In-Stock Immediately $ 141.75

2 61161P Heater Box Appelez-nous -
3 WP27001200 Screw   (Replaces: 33562) Special Order $ 8.06

4 62461 Limit Thermostat Appelez-nous -
5 WP3177991 Screw, 8b-18 X 1/4 He   (Replaces: 23222) In-Stock Immediately $ 7.55

6 490P3 Kit, Thermal Fuse/therm In-Stock Immediately $ 84.36

7 WP3390631 Hex Head Screw   (Replaces: 51780) Special Order $ 8.25

8 60952 Shield,heat Duct Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

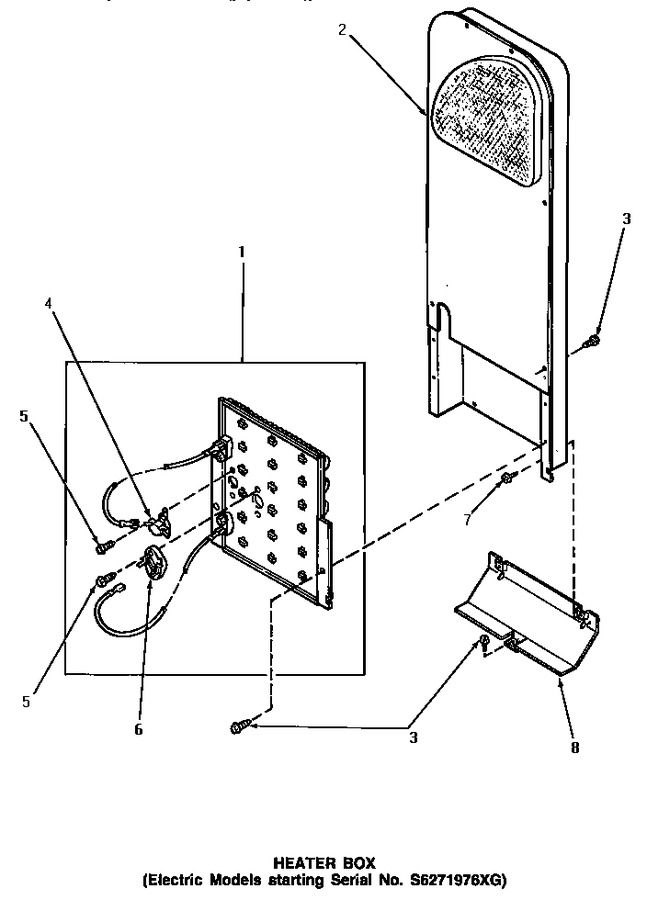

Diagram for NE4613
