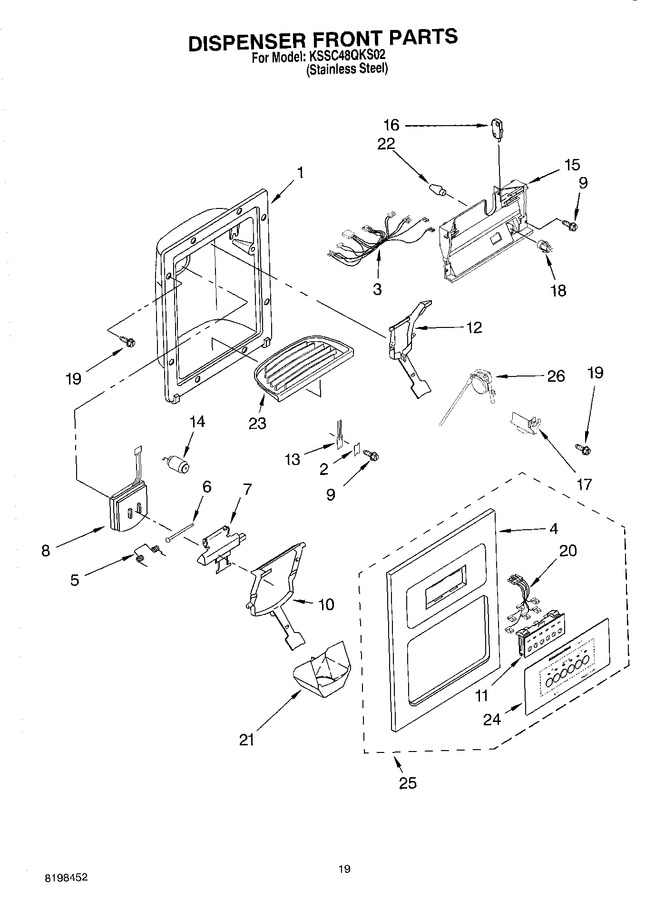

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.29 | |||||
| 3 | 2221203 | Wire Harness |
|
- | |||||
| 5 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 78.66 | |||||
| 6 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.78 | |||||
| 7 | 2206423 | Ice Door Mechanism |
|
- | |||||
| 8 | WP2180353 | Door, Ice (Replaces: 2180352) |
|
Immediately | $ 24.15 | ||||
| 9 | WP3400906 | Screw (Replaces: 489000) |
|
$ 8.15 | |||||
| 10 | 2180261 | Lever, Ice Dispenser |
|
- | |||||
| 11 | WP2180236 | Switch Assembly (Replaces: 2180236) |
|
$ 259.20 | |||||
| 12 | WPW10152859 | Lever, Water Dispenser (Replaces: 2180270) |
|
Immediately | $ 92.54 | ||||
| 13 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 11.12 | ||||
| 14 | 2205686 | Delay Mechanism |
|
- | |||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.27 | ||||
| 16 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 25.84 | ||||
| 17 | 2221214 | Bracket, Antidrip Valve |
|
- | |||||
| 18 | 2180200 | Lamp Holder |
|
$ 93.23 | |||||
| 19 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 7.56 | ||||
| 20 | 2311650 | Wire Assembly (Replaces: 2187409) |
|
$ 84.74 | |||||
| 21 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.02 | ||||
| 22 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 23 | WP2180325 | Grille, Overflow (Replaces: 2180325) |
|
Immediately | $ 65.21 | ||||
| 25 | 2215722 | Front Cover Assembly (includes Items 4, 11, 20 & 24) |
|
- | |||||
| 26 | 2257420 | Valve, Antidrip |
|
- |
