SELECT A DIAGRAM

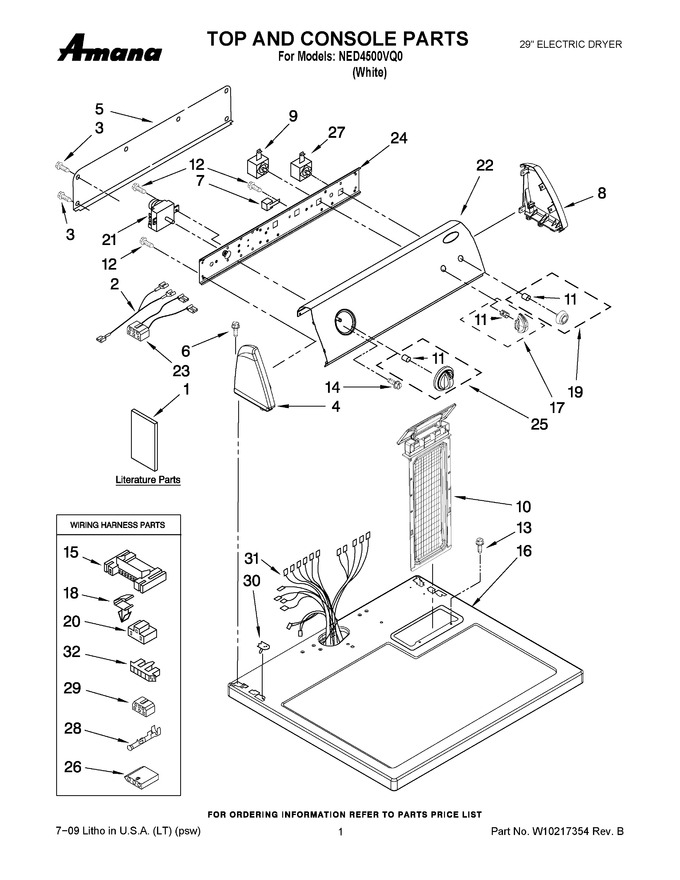

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10150612 | Instruction Installation |
|
- | |||||
| 1 | W10150620 | Use & Care Guide |
|
- | |||||
| 1 | 8576796 | Wiring Diagram |
|
- | |||||
| 1 | W10089178 | Sheet, Cycle Feature |
|
- | |||||
| 2 | W10203571 | Wire, Jumper Black (pts) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | 3405152 | Switch, Wrinkle Guard |
|
$ 131.07 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | W10196503 | Knob, Control (1) |
|
$ 5.65 | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | W10196504 | Knob, Push-to-start |
|
$ 54.97 | |||||
| 20 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 21 | WP8299779 | Timer, 60 Hz. (Replaces: 8299779) |
|
Immediately | $ 353.22 | ||||
| 22 | W10086734 | Panel, Control |
|
$ 177.63 | |||||
| 23 | 3401695 | Wire, Jumper Buzzer (on/off) |
|
- | |||||
| 24 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 25 | WPW10196507 | Timer Knob Assembly (Replaces: W10196507) |
|
$ 60.87 | |||||
| 26 | 3936144 | Connector |
|
$ 21.22 | |||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 28 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 29 | 3347243 | Connector |
|
- | |||||
| 30 | WP357213 | Nut-push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | WPW10450292 | Harness, Wiring (Replaces: 8576500) |
|
$ 279.32 | |||||
| 32 | 3397269 | Connector-timer |
|
$ 25.55 |
