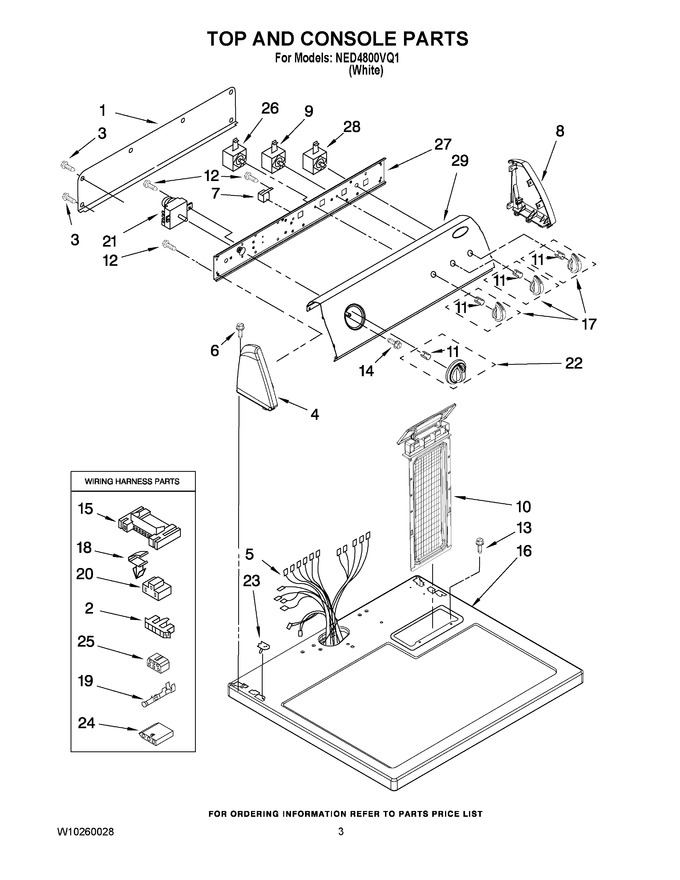

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3397269		Connector-timer				$ 25.55
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	W10186092		Harness, Wiring		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	W10196503		Knob, Control (2)				$ 5.65
18	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
19	WP94614		Terminal   (Replaces: 94614)				$ 8.05
20	3401144		Connector (pts) Relay				$ 12.81
21	WPW10185982		Timer, 60 Hz.   (Replaces: W10185982)			Immediately	$ 150.34
22	WPW10196507		Timer Knob Assembly   (Replaces: W10196507)				$ 60.87
23	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76
24	3936144		Connector				$ 21.22
25	3347243		Connector 6-circuit		Appelez-nous	-
26	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
27	8271418		Bracket, Control				$ 57.15
28	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
29	W10086735		Panel Control				$ 24.76
