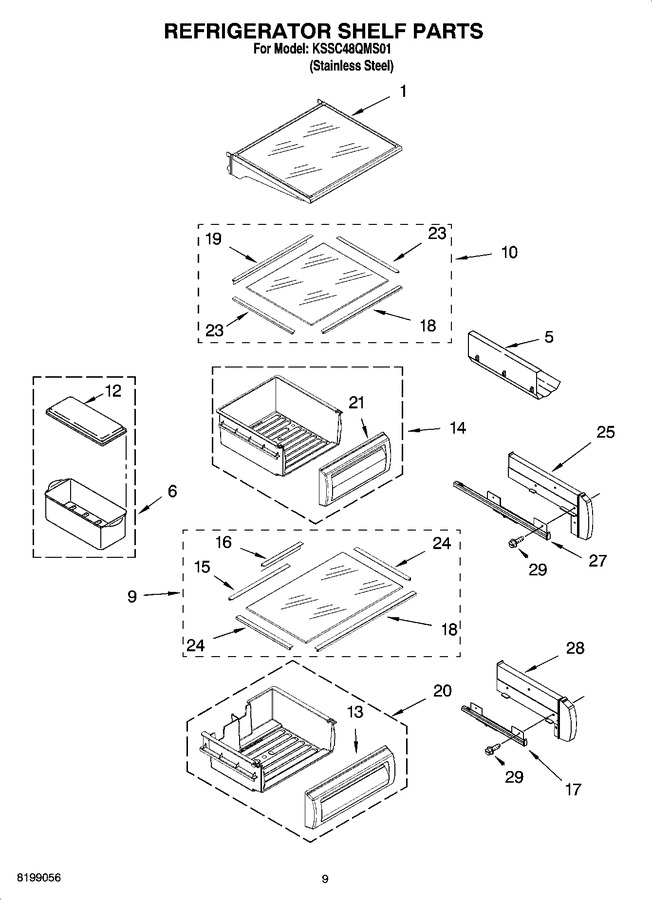

07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222593		Frame, Shelf   (Replaces: 2222593)				$ 320.16
5	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
6	WP2221071A		Egg Bin Meat Pan   (Replaces: 2221071)				$ 25.79
9	2302843		Meat Pan Cover Assembly		Appelez-nous	-
10	2302836		Crisper Pan Cover Assembly				$ 126.39
12	2169935		Cover		Appelez-nous	-
13	WP2256367		Front, Meat Pan   (Replaces: 2256367)				$ 182.76
14	W10407625		Crisper Pan (2)   (Replaces: 2252413)				$ 178.12
15	2257611		Trim, Glass Rear Side		Appelez-nous	-
16	2257583		Trim, Glass Rear		Appelez-nous	-
17	2302955		Slide, Meat Pan (right Side)				$ 343.18
17	2302954		Slide, Meat Pan (left Side)				$ 343.49
19	2256255		Trim, Glass Rear		Appelez-nous	-
20	W10407628		Meat Pan   (Replaces: 2256370)				$ 170.93
21	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 178.12
23	2252255		Trim, Glass (side) (crisper Pan)		Appelez-nous	-
24	2256250		Trim, Glass (side) (meat Pan)		Appelez-nous	-
25	2256223		Crisper Spacer, 2256222 Right Side (2) (left Side (2))				$ 84.49
27	2302957		Slide, Crisper (right Side)				$ 228.33
27	2302956		Slide, Crisper (left Side)				$ 298.73
28	2256243		Meat Pan Spacer, 2256244 Right Side (left Side)				$ 83.04
29	W11830745		Screw (right Side)   (Replaces: 8533929)		Appelez-nous	-
29	WP8533928		Screw (left Side)   (Replaces: 8533928)			Immediately	$ 8.26
