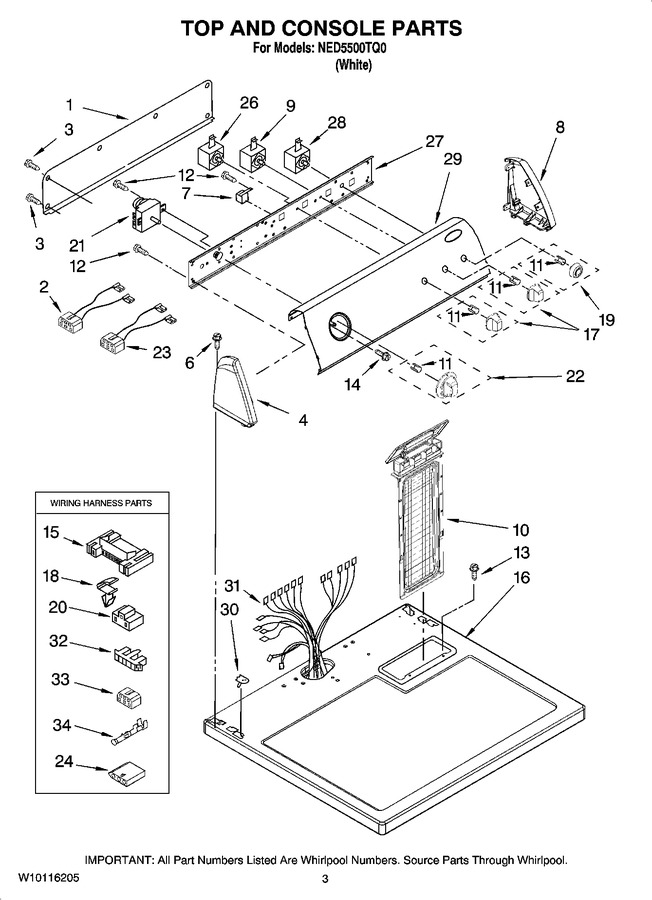

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 2 | 3401695 | Wire, Jumper Buzzer (on/off) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | 8557930 | Top (white) |
|
- | |||||
| 17 | WPW10110047 | Knob, Control (2) (white) (Replaces: W10110047) |
|
$ 55.52 | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | WPW10110049 | Knob, Push-to-start (white) (Replaces: W10110049) |
|
$ 52.86 | |||||
| 20 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 21 | WP3979617 | Timer, 60 Hz. (Replaces: 3979617) |
|
Immediately | $ 385.79 | ||||
| 22 | W10110048 | Timer Knob, Assembly (white) |
|
- | |||||
| 23 | 8539893 | Wire, Jumper (temperature) |
|
$ 19.78 | |||||
| 24 | 3936144 | Connector |
|
$ 21.22 | |||||
| 26 | 3405152 | Switch, Wrinke Gaurd |
|
$ 131.07 | |||||
| 27 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 28 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 29 | W10086670 | Panel Control (white) |
|
- | |||||
| 30 | WP357213 | Nut-push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 8576503 | Harness, Wiring |
|
- | |||||
| 32 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 |
