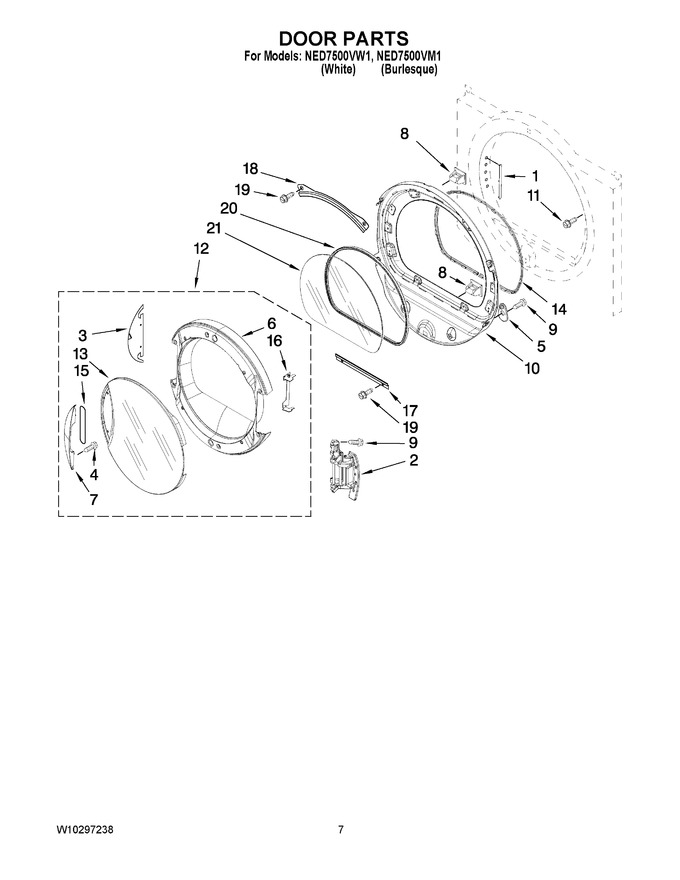

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole (white)				$ 85.03
1	WPW10085230		Label, Hinge Hole (silver)   (Replaces: W10085230)				$ 22.95
2	WPW10310366		Door Hinge Assembly   (Replaces: W10139920)			Immediately	$ 258.42
3	W10180095		Cover, Door Hinge		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	W10048910		Screw-plug		Appelez-nous	-
6	W10180094		Door-intermediate				$ 77.02
7	8577305		Handle, Door (include, Item. 15 )				$ 69.31
8	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
9	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 8.52
10	8578229		Door Assembly (inner) (include, Item. 1 & 8 )				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10180090		Door, Outer Assembly		Appelez-nous	-
13	W10180093		Assembly, Screen & Mass				$ 195.08
14	WPW10139457		Seal Door Assembly (upper)   (Replaces: W10139457)				$ 134.28
15	8580117		Pad-handle		Appelez-nous	-
16	W10180096		Door-shield		Appelez-nous	-
17	W10822054		Retainer-window Lower   (Replaces: 8519354)			Immediately	$ 18.01
18	8519356		Retainer-window Upper		Appelez-nous	-
19	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
20	8579662		Seal-window				$ 106.25
21	8566254		Glass-window				$ 127.75
