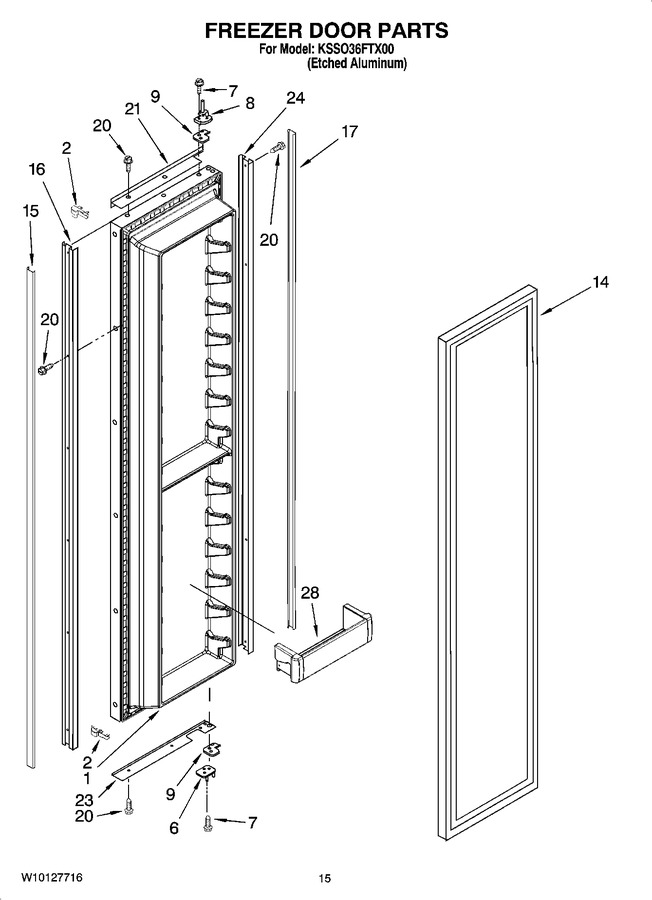

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252326		Freezer Door Panel (includes Item 14)		Appelez-nous	-
2	2207457		Trim, Corner				$ 57.12
6	2252294		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2252295		Hinge, Top				$ 51.53
9	W11673500		Spacer-door   (Replaces: 2316804)			Immediately	$ 130.37
14	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
15	2314003S		Cover, Screw (handle Side) (etched Aluminum)				$ 174.63
16	2309497S		Trim, Door (handle Side) (etched Aluminum)				$ 323.02
17	2259448S		Cover, Screw (hinge Side) (etched Aluminum)				$ 179.50
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2309488S		Trim, Door (top) (etched Aluminum)		Appelez-nous	-
23	2309494S		Trim (bottom) (etched Aluminum)		Appelez-nous	-
24	2309498S		Trim, Door (hinge Side) (etched Aluminum)				$ 324.38
28	W10323601		Bin, Shelf F.c. (6)   (Replaces: 2222775)				$ 92.19
