01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

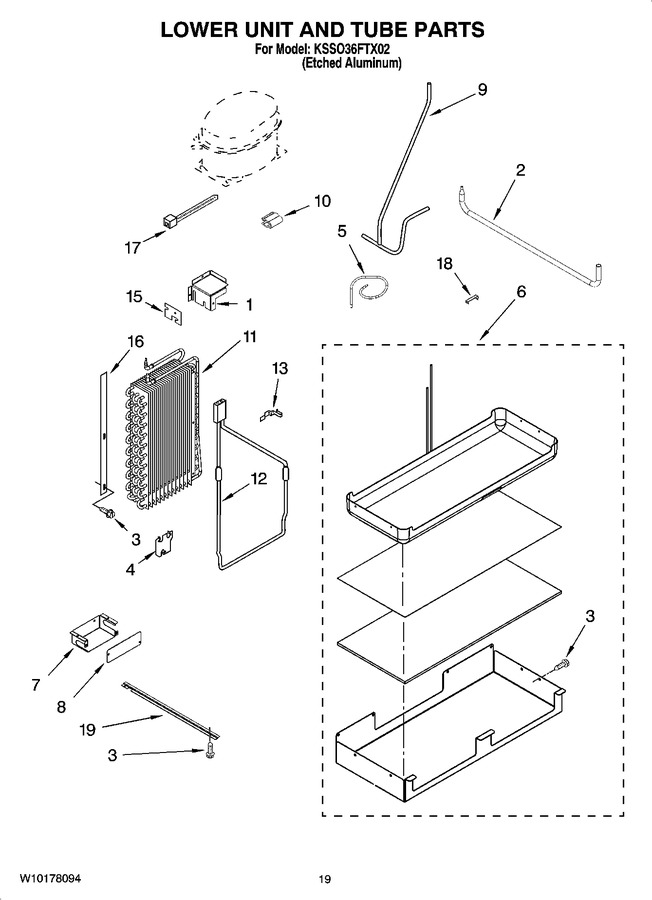

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 40.48
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	W10157752		Bracket, Heater Mounting		Appelez-nous	-
5	2309076		Suction Tube				$ 136.59
6	W11623101		Drain Pan Assy.   (Replaces: 2320615)			Immediately	$ 394.02
7	W10151288		Cover, Wiring		Appelez-nous	-
8	W10153595		Cover, Box		Appelez-nous	-
9	W10121370		Tube, Discharge		Appelez-nous	-
10	9791833		Clip		Appelez-nous	-
11	WP2306092		Evaporator   (Replaces: 2306092)			Immediately	$ 364.99
12	W10140160		Heater, Defrost		Appelez-nous	-
13	1113048		Clamp, Heater (2)		Appelez-nous	-
15	W10139908		Seal, Return Air				$ 13.06
16	2220832		Gasket, Evaporator		Appelez-nous	-
17	4389107		Wire Tie		Appelez-nous	-
18	W10169509		Clip, Heat Exchanger		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
