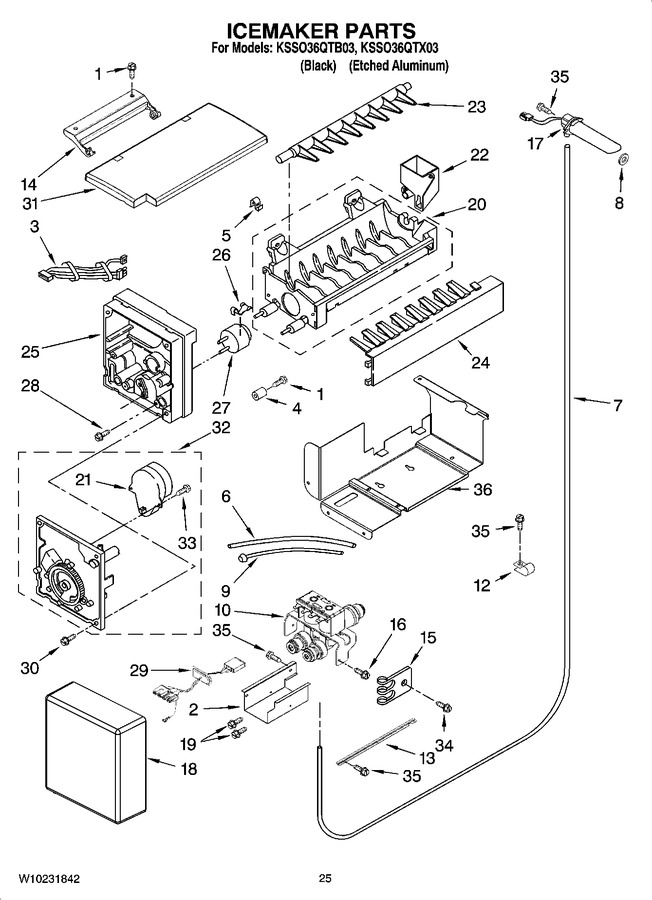

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 2 | 2320599 | Shield, Valve |
|
- | |||||
| 3 | 2310192 | Wire Assembly, Icemaker |
|
- | |||||
| 4 | 2252354 | Spacer |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10174395) |
|
$ 64.66 | |||||
| 7 | 2320658 | Water Tube |
|
$ 71.00 | |||||
| 8 | 2302758 | Seal Gasket |
|
- | |||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 31.57 | ||||
| 10 | WPW10159843 | Valve, Solenoid (Replaces: W10159843) |
|
Immediately | $ 320.64 | ||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.99 | |||||
| 13 | 2320559 | Support, Valve |
|
$ 84.56 | |||||
| 14 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | WP489069 | Screw 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 17 | W10460127 | Tube, Water Inlet (Replaces: 2302756) |
|
$ 198.34 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 20 | WPW10122550 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122550) |
|
$ 207.28 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | 626753 | Ejector |
|
$ 13.94 | |||||
| 24 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 72.98 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 2315522) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw |
|
$ 13.37 | |||||
| 29 | W10139199 | Wire Assembly, Smart Valve |
|
$ 138.85 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W10504752 | Cover, Icemaker (Replaces: 2317039) |
|
$ 86.46 | |||||
| 32 | W10190935 | Module Assembly (includes Items 21 & 33) (Replaces: 626680) |
|
Immediately | $ 110.07 | ||||
| 33 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 34 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 36 | 2300167 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | WPW10277449 | Complete Icemaker Assembly (Replaces: W10190970) |
|
$ 263.04 | |||||
| W10129081 | Handle Kit For Previous Architect Series (stainless) |
|
$ 242.61 | ||||||
| WPW10519441 | Ice Container Assembly (Replaces: W10134769) |
|
$ 348.39 | ||||||
| 8537055 | Cleaner, Stainless Steel |
|
- |
