SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts

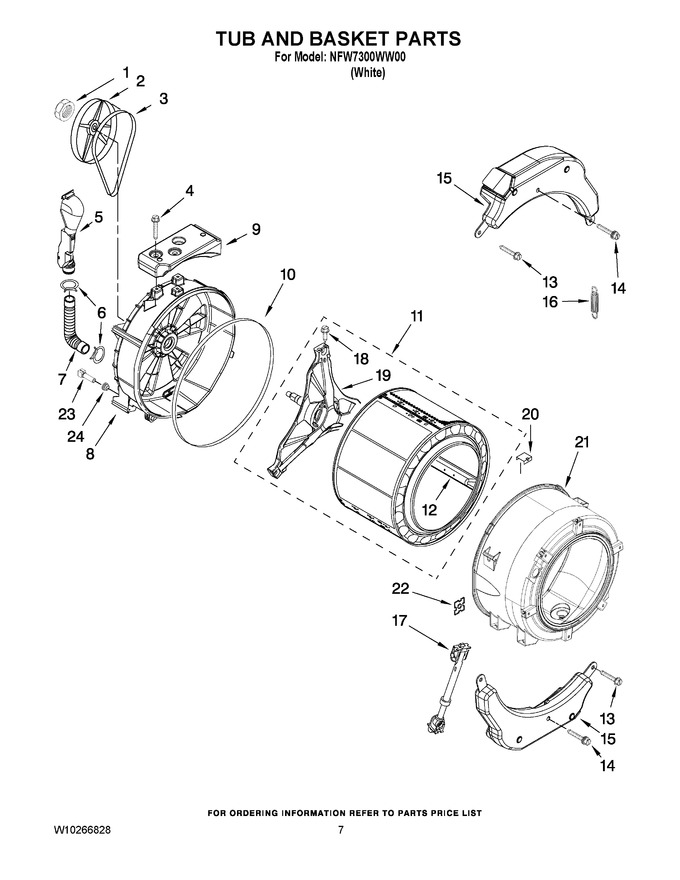

06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 83.07
2	WP8540088C		Pulley   (Replaces: 8540088C)				$ 206.14
3	WP8540101		Belt, Drive   (Replaces: 8540101)			Immediately	$ 42.79
4	W11028021		Screw, Rear Counterweight (3)   (Replaces: W10246531)				$ 9.27
5	W10142720		Pipe, Ventilation				$ 110.43
6	8540010		Clamp, Vent Hose				$ 11.74
7	W11398765		Hose, Exhaust   (Replaces: 8540019)				$ 31.69
8	W11239040		Tub, Rear (includes Items 10 & 22)   (Replaces: W10200751)				$ 801.66
9	WPW10200747		Counterweight, Rear   (Replaces: W10200747)				$ 169.18
10	WPW10111158		Gasket, Tub   (Replaces: 8540090)			Immediately	$ 104.09
11	WPW10202459		Basket, Complete   (Replaces: W10202459)				$ 595.44
12	WP8540360		Baffle, Tub   (Replaces: 8540360)			Immediately	$ 84.43
13	W11685857		Bolt, Counterweight (4)   (Replaces: W10094780)				$ 14.81
14	WPW10259288		Bolt Assembly, Counterweight Center Hole (2)   (Replaces: W10259288)				$ 13.98
15	WPW10223198		Counterweight, Front (2)   (Replaces: W10223198)			Immediately	$ 187.86
16	280159		Spring, Suspension (set Of 2)   (Replaces: W10010360)				$ 112.10
17	W10822553		Shock Absorber (3)   (Replaces: W10015830)			Immediately	$ 83.35
18	WP8540382		Screw   (Replaces: 8540382)				$ 7.30
19	W10202464		Crosspiece Asm		Appelez-nous	-
20	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.97
21	W10313497		Tub, Front (includes Items 10 & 22)   (Replaces: W10303340)				$ 287.56
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 7.30
23	WPW10467289		Negative Thermistor Control   (Replaces: W10176659)			Immediately	$ 47.80
24	W11590578		Seal, Rubber   (Replaces: 8540766)			Immediately	$ 8.37

    View Diagram in Separate Window       Print Part List
