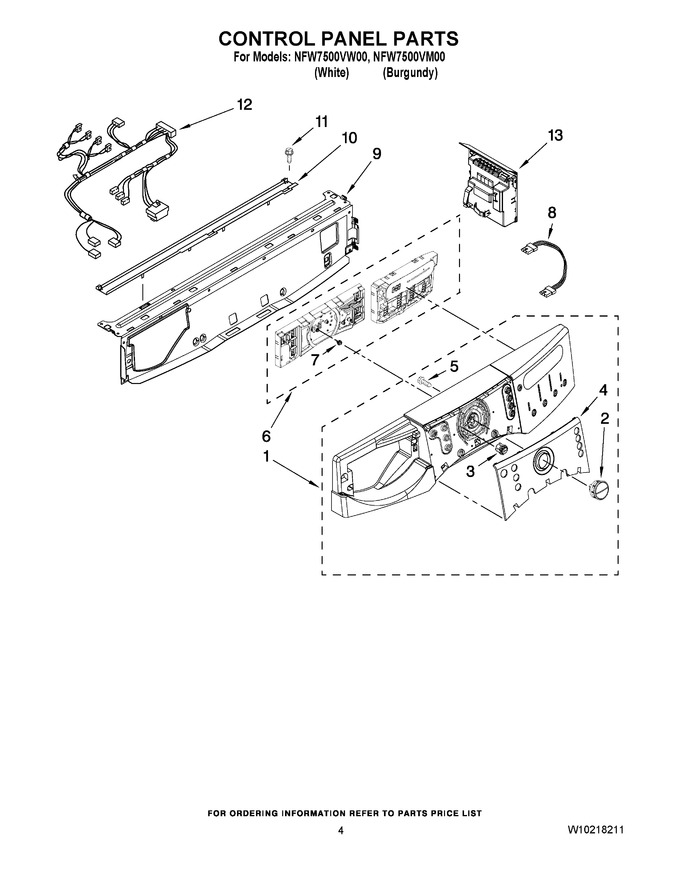

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10219479		Panel, Control (burgundy)		Appelez-nous	-
1	W10219478		Panel, Control (white)		Appelez-nous	-
2	W10219484		Knob, Control (white)		Appelez-nous	-
2	W10219485		Knob, Control (burgundy)		Appelez-nous	-
3	8183268		Wheel, Encoder				$ 70.14
4	W10219481		Cover, Control Panel (burgundy)		Appelez-nous	-
4	W10219480		Cover, Control Panel (white)		Appelez-nous	-
5	W10006580		Screw		Appelez-nous	-
6	W10308836		User Interface, Center & Right		Appelez-nous	-
7	8183250		Adapter, Encoder Wheel		Appelez-nous	-
8	8183254		Harness, Wiring (user Interface)   (Replaces: W10168511)				$ 176.73
9	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 194.85
10	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
11	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
12	W10168479		Harness, Wiring (upper Main)				$ 106.29
13	W10163809		Microcomputer, Machine Control				$ 307.16

    View Diagram in Separate Window       Print Part List
