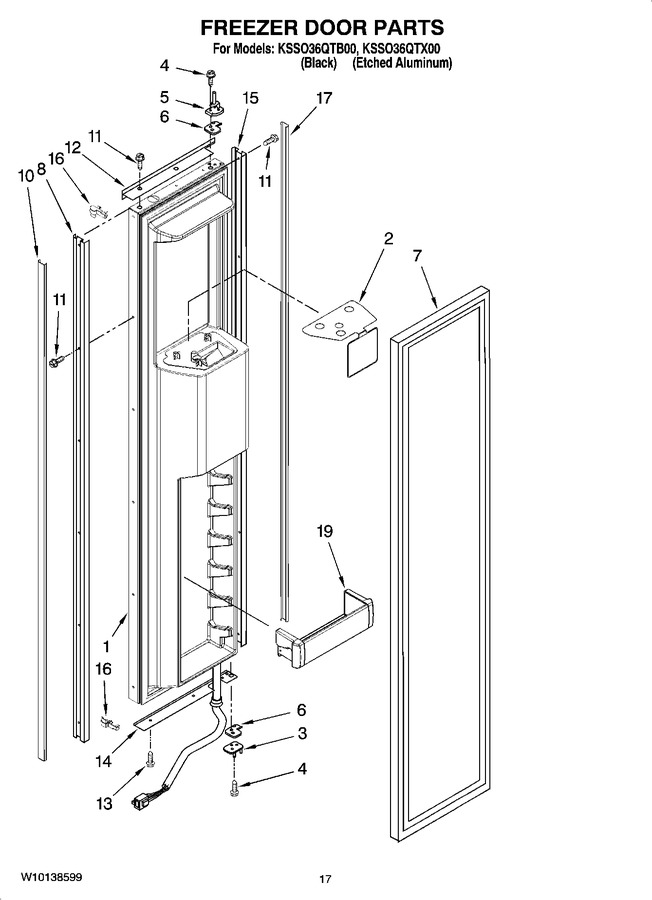

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10130864 Freezer Door (includes 14) (universal Silver) Appelez-nous -
1 W10130863 Freezer Door (includes 14) (black) Appelez-nous -
2 2304896 Saftey Barrier Appelez-nous -
3 2252294B Hinge, Bottom (black) Appelez-nous -
3 2252294 Hinge, Bottom (chrome) Appelez-nous -
4 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

5 2252295 Hinge, Top (chrome) Special Order $ 51.53

5 2252295B Hinge, Top (black) Appelez-nous -
6 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 108.07

7 W11624976 Door Gasket, Magnetic   (Replaces: 2222813) In-Stock Immediately $ 316.47

8 2309497S Trim-door, (handle Side) (stainless Steel) Special Order $ 323.02

8 2309497B Trim-door, (handle Side) (black) Appelez-nous -
10 2314003B Trim, Screw Cover (handle Side) (black) Appelez-nous -
10 2314003S Trim, Screw Cover (handle Side) (stainless Steel) Special Order $ 174.63

11 W10851443 Screw (black)   (Replaces: 8281252) In-Stock Immediately $ 8.13

11 WP8281250 Screw Stainless Steel   (Replaces: 8281250) Special Order $ 11.42

12 2309488B Trim-door, Top (black) Appelez-nous -
12 2309488S Trim-door, Top (stainless Steel) Appelez-nous -
13 W10759522 Screw   (Replaces: 488568) Special Order $ 8.24

14 2309494S Trim-door, Btm (stainless Steel) Appelez-nous -
14 2309494B Trim-door, Btm (black) Appelez-nous -
15 2309498B Trim-door, (hinge Side) (black) Appelez-nous -
15 2309498S Trim-door, (hinge Side) (stainless Steel) Special Order $ 324.38

16 2006273 Trim, Corner (black) Appelez-nous -
16 2207457 Trim, Corner (chrome) Special Order $ 57.12

17 2259448S Trim, Screw Cover (hinge Side) (stainless Steel) Special Order $ 179.50

17 2259448B Trim, Screw Cover (hinge Side) (black) Appelez-nous -
19 W10323601 Bin, Door (3)   (Replaces: 2222775) Special Order $ 92.19


    View Diagram in Separate Window     Print Icon   Print Part List
