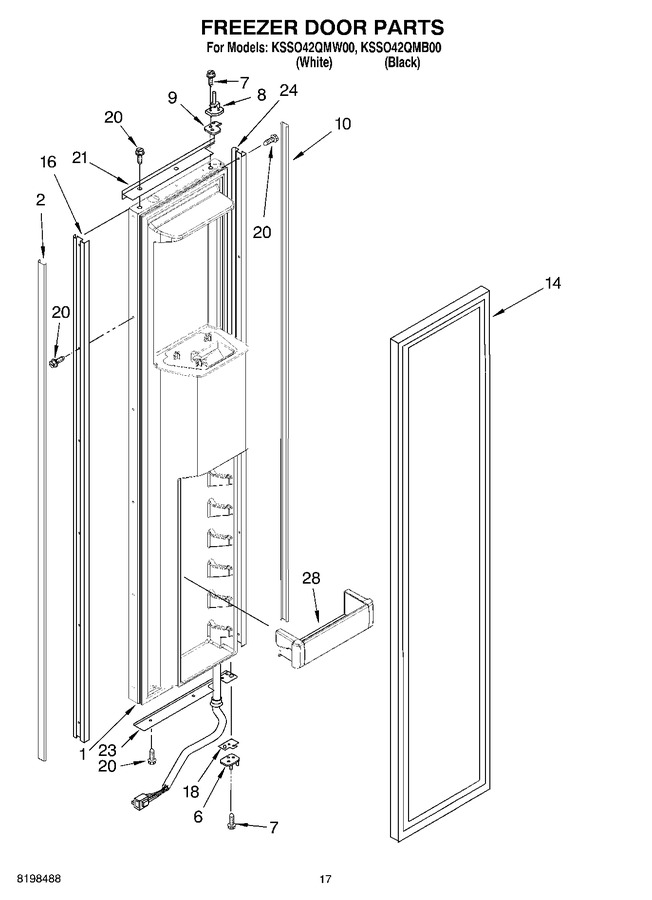

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252324B		Freezer Door Panel (includes Insulation) (black)		Appelez-nous	-
1	2252324W		Freezer Door Panel (includes Insulation) (white)		Appelez-nous	-
2	2259448B		Trim, Screw Cover (handle Side) (black)		Appelez-nous	-
2	2259448W		Trim, Screw Cover (handle Side) (white)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
10	2259365W		Trim, Screw Cover (hinge Side) (white)		Appelez-nous	-
10	2259365B		Trim, Screw Cover (hinge Side) (black)		Appelez-nous	-
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
16	2259041W		Trim (handle Side) (white)		Appelez-nous	-
16	2259041B		Trim (handle Side) (black)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
20	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
21	2005886		Trim (top) (black)		Appelez-nous	-
21	2005023		Trim (top) (white)		Appelez-nous	-
23	2215985B		Trim (bottom) (black)		Appelez-nous	-
23	2215985W		Trim (bottom) (white)		Appelez-nous	-
24	2257687W		Trim (hinge Side) (white)		Appelez-nous	-
24	2257687B		Trim (hinge Side) (black)		Appelez-nous	-
28	W10323602		Bin, Shelf F.c.(3)   (Replaces: 2222776)				$ 98.03
