SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

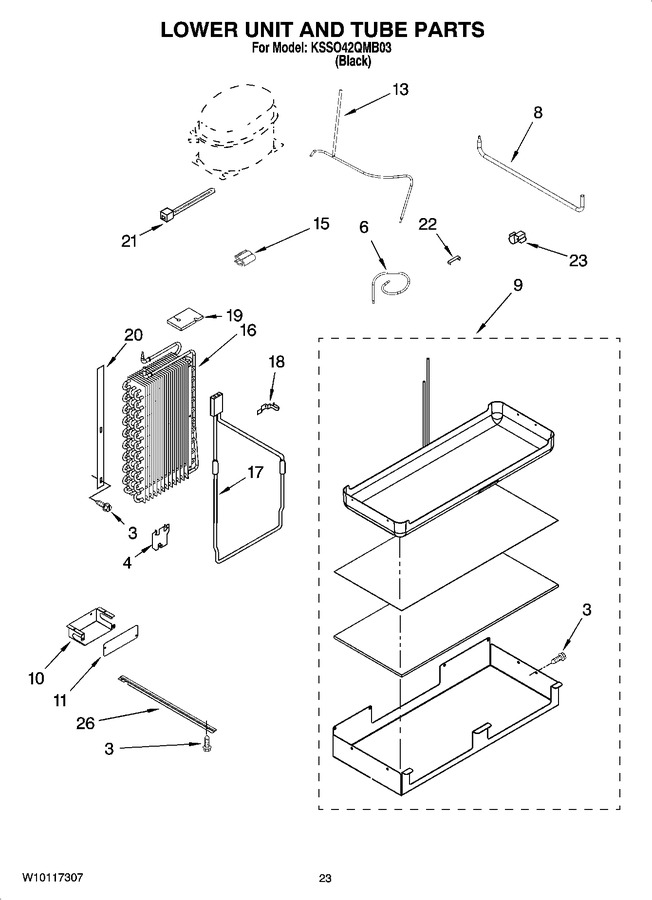

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2215508		Bracket		Appelez-nous	-
6	2259303		Suction Tube				$ 32.51
8	2259304		Tube, Connect (drier/restrictor)				$ 54.54
9	W11623101		Drain Pan Assy.   (Replaces: 2320615)			Immediately	$ 375.26
10	2316683		Cover, Wiring		Appelez-nous	-
11	2316684		Cover, Box		Appelez-nous	-
13	W10624429		Tube, Discharge   (Replaces: 2259353)		Appelez-nous	-
15	9791833		Clip-thermistor		Appelez-nous	-
16	WP2306093		Evaporator   (Replaces: 2306093)			Immediately	$ 364.61
17	WP2306388		Heater, Defrost   (Replaces: 2306388)				$ 163.08
18	1113048		Clamp, Heater (2)		Appelez-nous	-
19	2316794		Seal, Return Air		Appelez-nous	-
20	2220832		Gasket, Evaporator		Appelez-nous	-
21	4389107		Wire Tie		Appelez-nous	-
22	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
23	488946		Clip, Water Tube				$ 20.45
26	2320554		Bracket, Drain Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
