Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10130866 Freezer Door (includes 14) (universal Silver) Appelez-nous -
1 W10130865 Freezer Door (includes 14) (black) Appelez-nous -
2 2304896 Saftey Barrier Appelez-nous -
3 2252294B Hinge, Bottom (black) Appelez-nous -
3 2252294 Hinge, Bottom (chrome) Appelez-nous -
4 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 7.77

5 2252295 Hinge, Top (chrome) Special Order $ 51.53

5 2252295B Hinge, Top (black) Appelez-nous -
6 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 117.33

7 WP2266905 Door Gasket, Magnetic   (Replaces: 2222814) Special Order $ 296.69

8 2309497S Trim-door, (handle Side) (stainless Steel) Special Order $ 290.72

8 2309497B Trim-door, (handle Side) (black) Appelez-nous -
10 2314003B Trim, Screw Cover (handle Side) (black) Appelez-nous -
10 2314003S Trim, Screw Cover (handle Side) (stainless Steel) Special Order $ 157.17

11 W10851443 Screw (black)   (Replaces: 8281252) In-Stock Immediately $ 7.32

11 WP8281250 Screw Stainless Steel   (Replaces: 8281250) Special Order $ 10.28

12 2309489B Trim-door, Top (black) Appelez-nous -
12 2309489S Trim-door, Top (stainless Steel) Appelez-nous -
13 W10759522 Screw   (Replaces: 488568) Special Order $ 7.42

14 2309495S Trim-door, Btm (stainless Steel) Appelez-nous -
14 2309495B Trim-door, Btm (black) Appelez-nous -
15 2309498B Trim-door, (hinge Side) (black) Appelez-nous -
15 2309498S Trim-door, (hinge Side) (stainless Steel) Special Order $ 291.94

16 2006273 Trim, Corner (black) Appelez-nous -
16 2207457 Trim, Corner (chrome) Special Order $ 51.41

17 2259448S Trim, Screw Cover (hinge Side) (stainless Steel) Special Order $ 161.55

17 2259448B Trim, Screw Cover (hinge Side) (black) Appelez-nous -
19 W10323602 Bin, Door (3)   (Replaces: 2222776) Special Order $ 88.23


    View Diagram in Separate Window     Print Icon   Print Part List

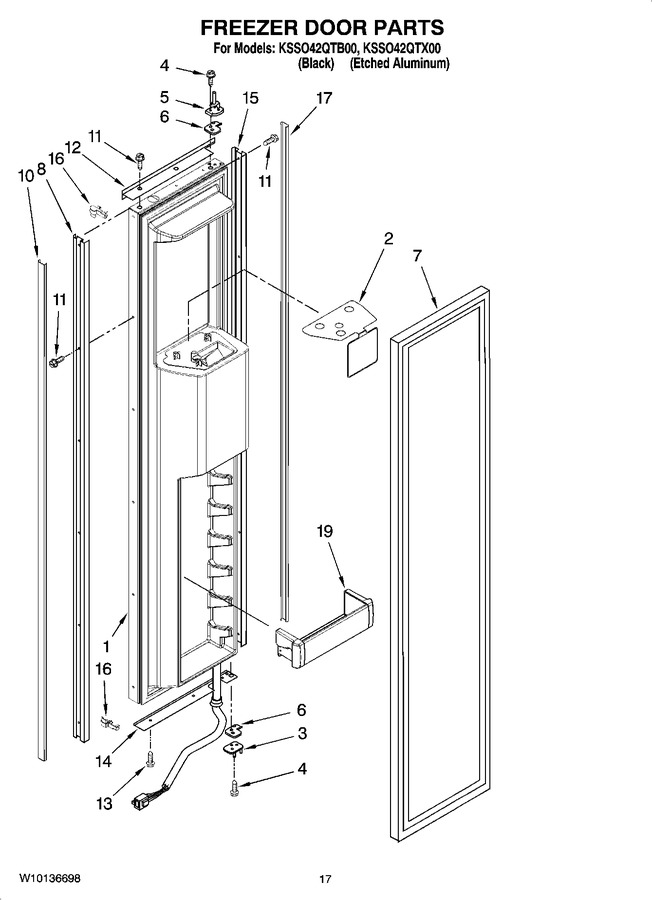

Diagram for KSSO42QTX00
