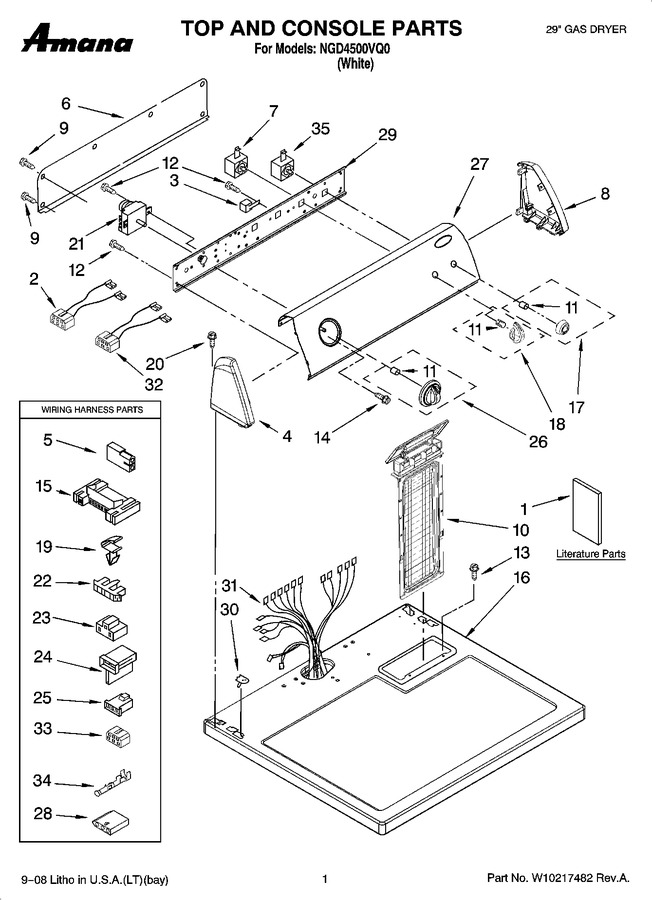

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089178		Sheet, Cycle Feature		Appelez-nous	-
1	W10150630		Instructions, Installation		Appelez-nous	-
1	W10150620		Use & Care Guide		Appelez-nous	-
1	8576796		Wiring Diagram		Appelez-nous	-
2	W10203571		Jumper, Auxillary Switch		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3405152		Switch, Wrinkle Gaurd				$ 131.07
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
17	W10196504		Knob, Push-to-start				$ 54.97
18	W10196503		Knob, Control				$ 5.65
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	WP3977678		Timer Assembly (60 Hz.)   (Replaces: 3977678)				$ 332.54
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.81
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WPW10196507		Timer Knob Assembly   (Replaces: W10196507)				$ 60.87
27	W10086734		Panel, Control				$ 177.63
28	3936144		Connector				$ 21.22
29	8271418		Bracket, Control				$ 57.15
30	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76
31	8299876		Harness, Wiring		Appelez-nous	-
32	3401695		Jumper, Buzzer (on/off)		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
35	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
