SELECT A DIAGRAM

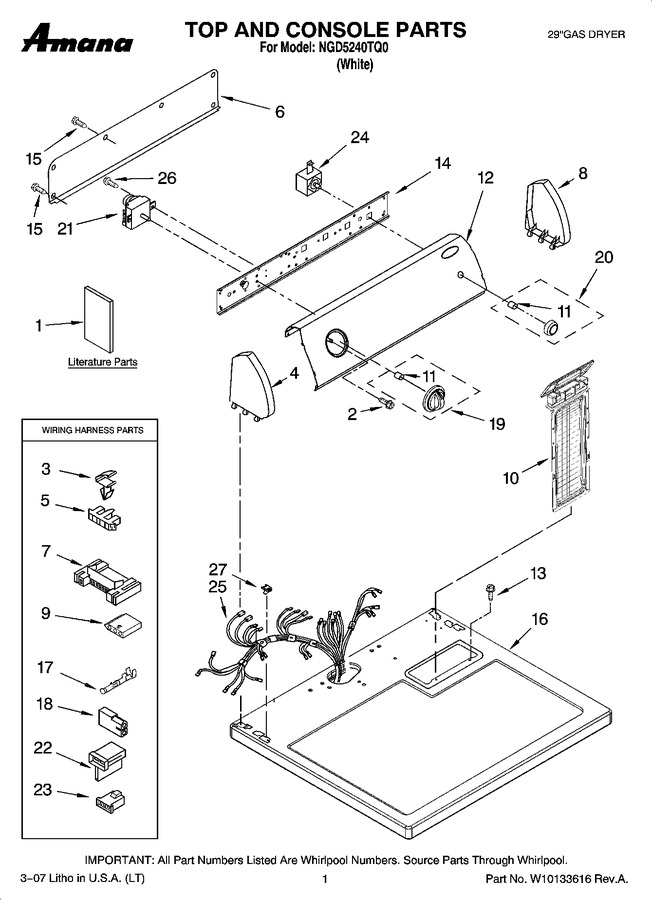

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10088771		Use & Care Guide		Appelez-nous	-
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10088971		Installation Instructions		Appelez-nous	-
1	W10089173		Sheet, Cycle Feature		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector-timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3936144		Connector				$ 21.22
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	W10086672		Panel Control		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	8271418		Bracket, Control				$ 57.15
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557930		Top		Appelez-nous	-
17	WP94614		Terminal   (Replaces: 94614)				$ 8.05
18	717252		Receptacle, 2-way		Appelez-nous	-
19	W10110048		Timer Knob Assembly		Appelez-nous	-
20	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 52.86
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
22	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
25	8299876		Harness, Wiring		Appelez-nous	-
26	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
27	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76

    View Diagram in Separate Window       Print Part List
