SELECT A DIAGRAM

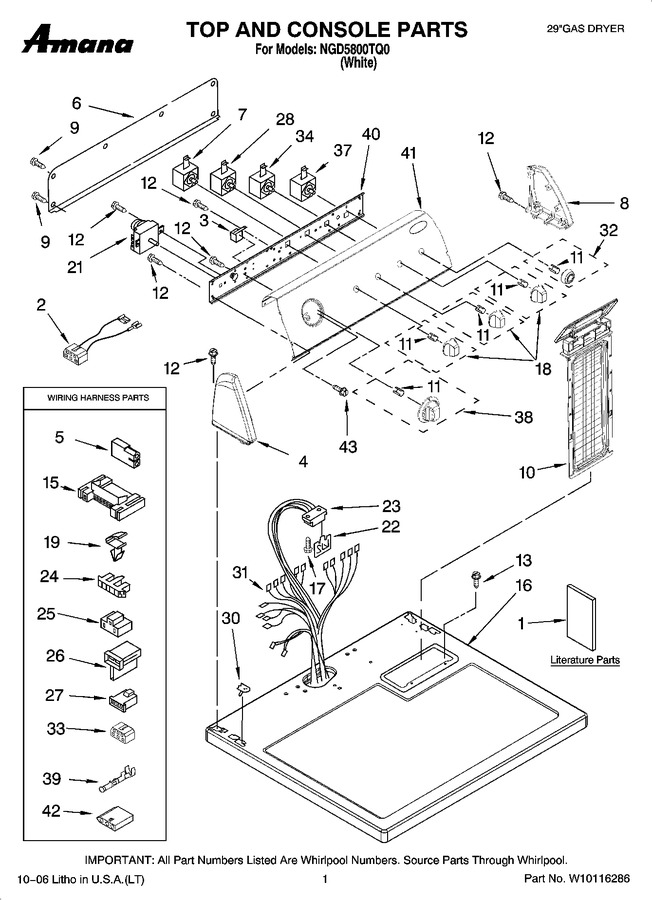

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089173		Sheet, Cycle Feature		Appelez-nous	-
1	3406668		Wiring Diagram		Appelez-nous	-
1	W10088771		Use & Care Guide		Appelez-nous	-
1	W10088971		Instructions, Installation		Appelez-nous	-
2	3401695		Jumper, Buzzer (on/off)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 235.13
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8557930		Top (white)		Appelez-nous	-
17	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
18	WPW10110047		Knob, Control (3) (white)   (Replaces: W10110047)				$ 55.52
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 387.01
22	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 329.93
23	3391885		Connector, Edge				$ 90.72
24	3397269		Connector-timer				$ 25.55
25	3401144		Connector (pts) Relay				$ 12.81
26	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	3405152		Switch, End Of Cycle				$ 131.07
30	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76
31	8299891		Harness, Wiring		Appelez-nous	-
32	WPW10110049		Knob, Push-to-start (white)   (Replaces: W10110049)				$ 52.86
33	3347243		Connector 6-circuit		Appelez-nous	-
34	3405154		Switch, Wrinkle Shield				$ 160.52
37	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
38	W10110048		Timer Knob, Assembly (white)		Appelez-nous	-
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
40	8271418		Bracket, Control				$ 57.15
41	W10086671		Panel, Control (white)		Appelez-nous	-
42	3936144		Connector				$ 21.22
43	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
