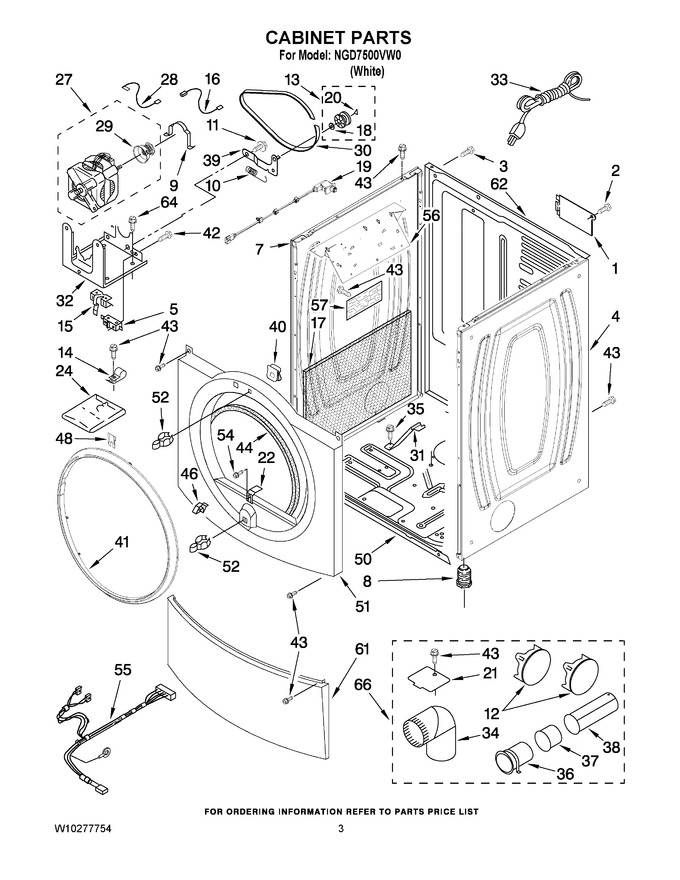

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 8.20
4	W11233548		Panel, Side (r.h.)   (Replaces: W10192446)				$ 261.33
5	W10167612		Switch, Broken Belt				$ 13.42
7	W11233548		Panel, Side (l.h.)   (Replaces: W10192435)				$ 261.33
8	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor (2)   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
16	3394081		Wire, Belt Switch				$ 37.57
17	W10123956		Sound Panel		Appelez-nous	-
18	WPW10121334		Washer, Flat Plastic   (Replaces: W10121334)			Immediately	$ 7.55
19	W10128087		Assembly, Door Switch				$ 95.53
20	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 9.41
22	8529053		Ramp, Door				$ 51.37
24	8541503		Kit, Stack Assembly			Immediately	$ 43.18
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	3398948		Wire, Jumper (broken Belt Switch)				$ 64.66
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
35	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	62825		Clip, S-type (3)				$ 8.11
41	W10181832		Trim-ring Assembly (includes: Items: 47 & 48)				$ 137.33
42	WP98129		Screw, 6-20 X 1-1/16   (Replaces: 98129)				$ 8.18
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
48	W10112671		Trim-clip Metal				$ 12.31
50	W10239098		Base, Cabinet				$ 148.45
51	W10180423		Front Panel (includes Illus. 44)				$ 139.69
52	279570		Strike, Door (2)   (Replaces: 696144)			Immediately	$ 8.89
54	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
55	W10181464		Harness, Digital Interface		Appelez-nous	-
56	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 179.69
57	W10174745		Control Board				$ 307.22
61	W10116271		Toe, Panel		Appelez-nous	-
62	W10180481		Panel, Rear		Appelez-nous	-
64	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
66	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
