SELECT A DIAGRAM
New Model Search:

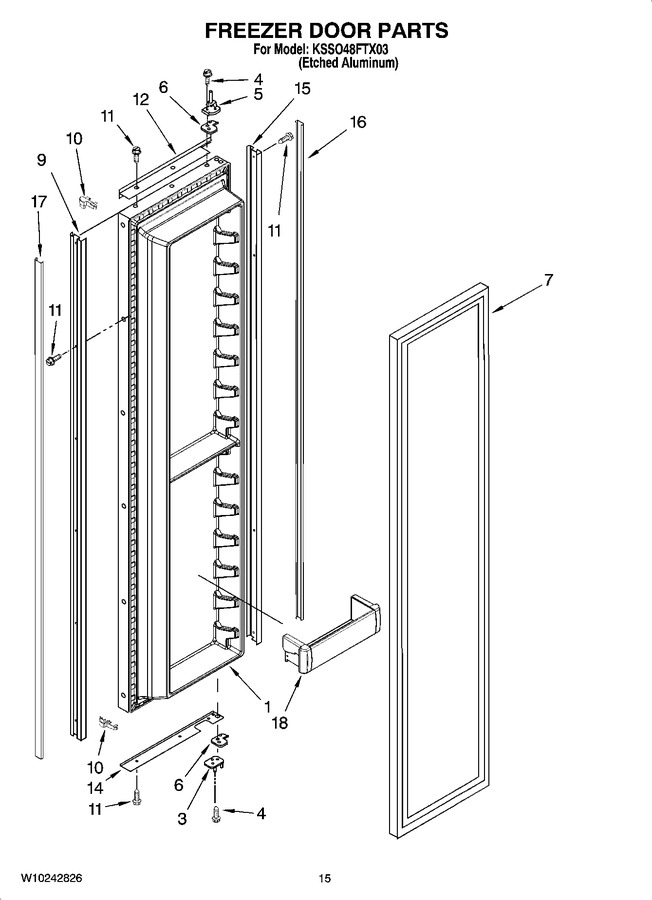

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193487 | Freezer Door (includes 14) |
|
- | |||||
| 3 | 2252294 | Hinge, Bottom |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 7.77 | ||||
| 5 | 2252295 | Hinge, Top |
|
$ 51.53 | |||||
| 6 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 7 | WP2266901 | Door Gasket, Magnetic (Replaces: 2222810) |
|
$ 332.86 | |||||
| 9 | 2309497S | Trim-door (handle Side) |
|
$ 290.72 | |||||
| 10 | 2207457 | Trim, Corner |
|
$ 51.41 | |||||
| 11 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 10.28 | |||||
| 12 | 2309490S | Trim-door, Top |
|
$ 224.00 | |||||
| 14 | 2309496S | Trim-door, Btm |
|
$ 220.94 | |||||
| 15 | 2309498S | Trim-door (hinge Side) |
|
$ 291.94 | |||||
| 16 | 2259448S | Cover, Trim (handle Side) |
|
$ 161.55 | |||||
| 17 | 2314003S | Cover, Trim (hinge Side) |
|
$ 157.17 | |||||
| 18 | W11590561 | Bin, Door (6) (Replaces: 2222777) |
|
$ 84.81 |
