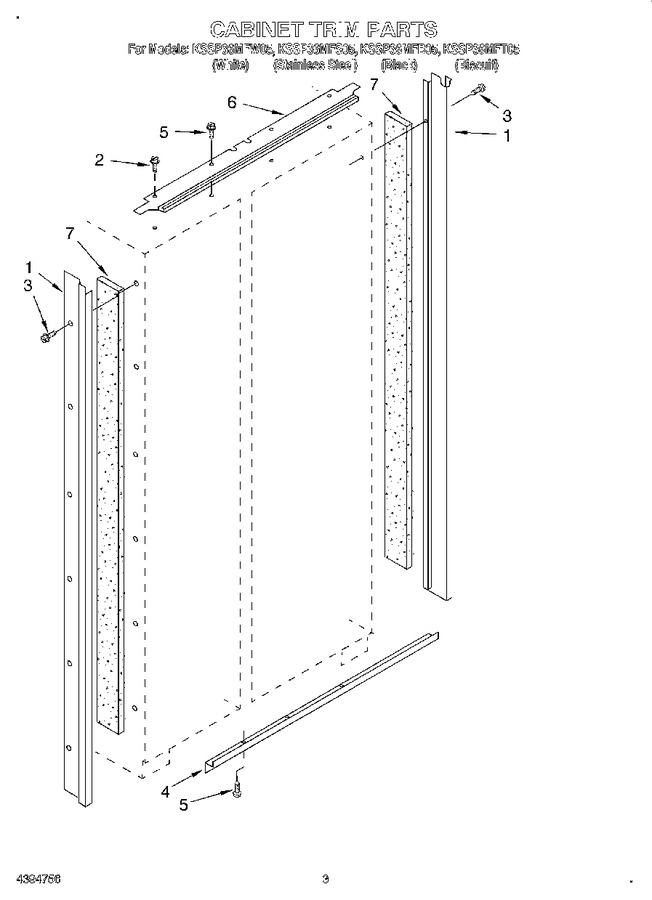

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2004668		Cabinet, Trim (2) (white)		Appelez-nous	-
1	2004553		Cabinet, Trim (2) (aluminum (black Model))		Appelez-nous	-
1	2004621		Cabinet, Trim (2) (stainless Steel)		Appelez-nous	-
1	2005730		Cabinet, Trim (2) (biscuit)		Appelez-nous	-
2	2003857		Screw		Appelez-nous	-
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
4	2004536		Cabinet, Trim (bottom)		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 14.02
6	2003645		Cabinet, Trim Top		Appelez-nous	-
7	2005925		Seal, Side Trim				$ 83.72
