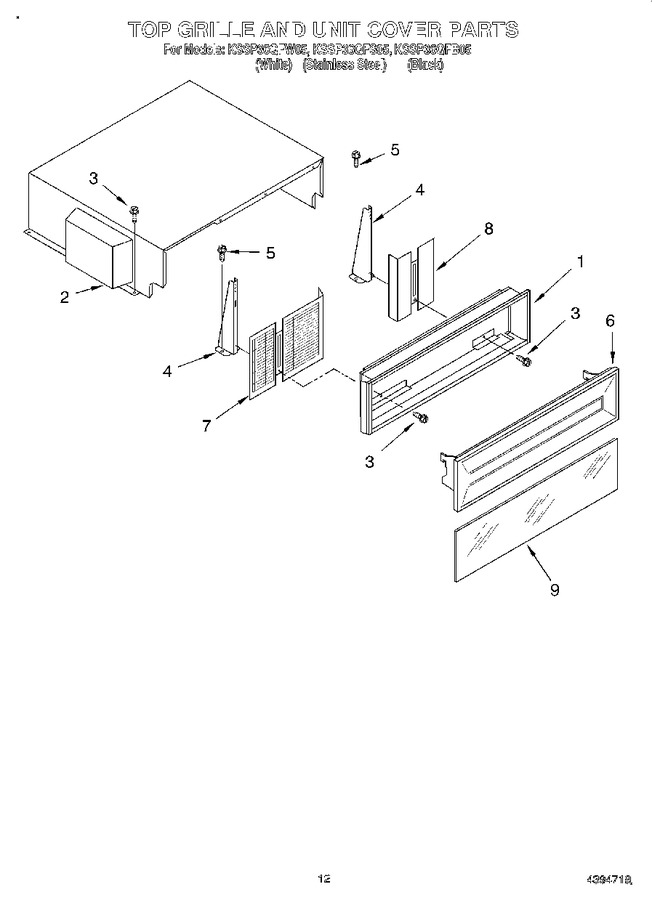

SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Motor And Ice Container


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003716		Top Grille Assembly (white Model)		Appelez-nous	-
1	2003713		Top Grille Assembly (black)		Appelez-nous	-
1	2004955		Top Grille Assembly (stainless Steel)		Appelez-nous	-
2	2004946		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 16.65
6	2003725		Decortive Panel Assembly (white)		Appelez-nous	-
6	2003722		Decortive Panel Assembly (black)		Appelez-nous	-
6	2004958		Decortive Panel Assembly (stainless Steel)		Appelez-nous	-
7	2003480		Guard, Compressor Wiring		Appelez-nous	-
8	2003481		Guard, Water Valve Wiring		Appelez-nous	-
9	4210796		Panel, Decorative Acrylic (white)		Appelez-nous	-
9	4210650		Panel, Decorative Acrylic (black)		Appelez-nous	-
9	4210710		Panel, Decorative Acrylic (stainless Steel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
