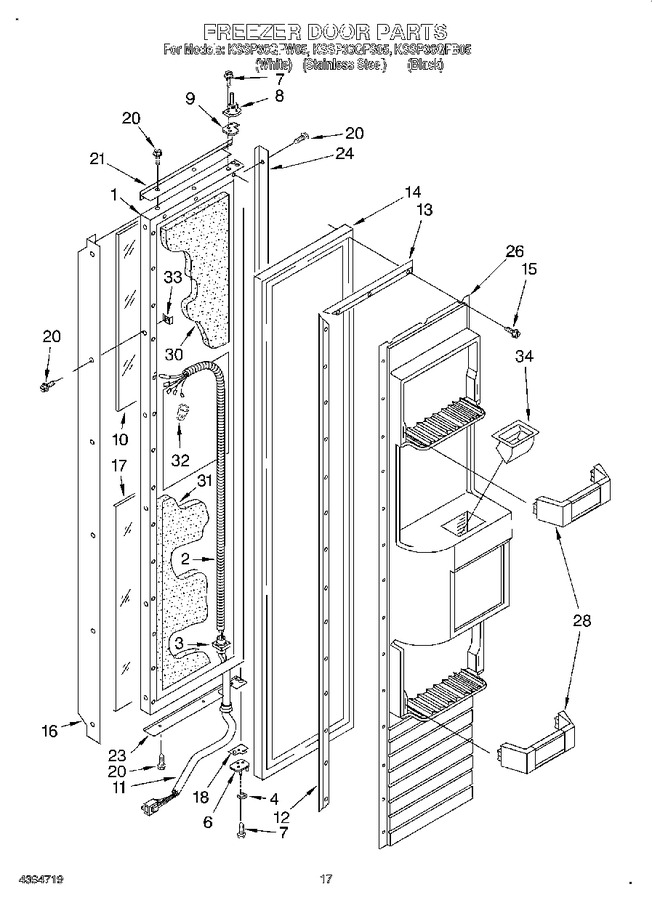

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2004884		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2004521		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door,		Appelez-nous	-
10	4378734		Panel, Decorative Upper (white)		Appelez-nous	-
10	4378748		Panel, Decorative Upper (stainless Steel Top)		Appelez-nous	-
10	4378735		Panel, Decorative Upper (black)		Appelez-nous	-
11	2004924		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2000877		Door Gasket, Magnetic		Appelez-nous	-
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2003682		Handle, Door (white)		Appelez-nous	-
16	2003681		Handle, Door (black)		Appelez-nous	-
16	2004637		Handle, Door (stainless Steel)		Appelez-nous	-
17	4210541		Panel, Decorative Lower (black)		Appelez-nous	-
17	4210792		Panel, Decorative Lower (white)		Appelez-nous	-
17	4378749		Panel, Decorative Lower (stainless Steel)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP488729		Screw (stainless Steel)   (Replaces: 487052)			Immediately	$ 7.79
20	2001208		Screw (white)		Appelez-nous	-
21	2005025		Trim (top) (stainless Steel)		Appelez-nous	-
21	2005019		Trim (top) (black)		Appelez-nous	-
21	2005022		Trim (top) (white)		Appelez-nous	-
23	2004560		Trim (bottom) (black)		Appelez-nous	-
23	2004631		Trim (bottom) (stainless Steel)		Appelez-nous	-
23	2004669		Trim (bottom) (white)		Appelez-nous	-
24	2003678		Trim (side) (white)		Appelez-nous	-
24	2004635		Trim (side) (stainless Steel)		Appelez-nous	-
24	2003677		Trim (side) (black)		Appelez-nous	-
26	2002838		Panel, Interior Door		Appelez-nous	-
28	2003127		Shelf Bin (2)		Appelez-nous	-
30	2005059		Insulation		Appelez-nous	-
31	2005060		Insulation		Appelez-nous	-
32	547217		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
34	2002733		Ice Chute		Appelez-nous	-
