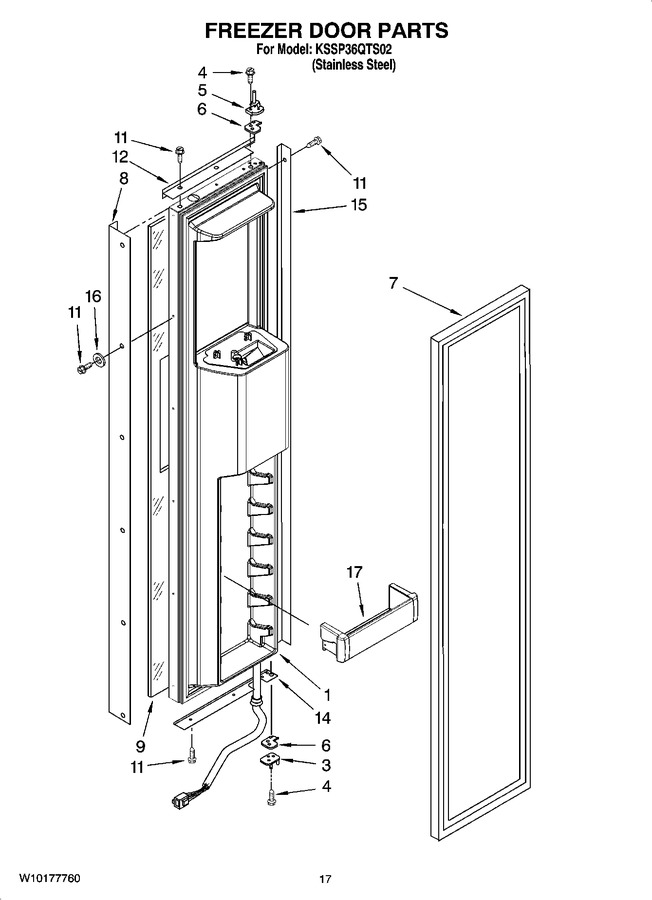

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10157901		Freezer Door (includes 14)		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
8	2316844S		Handle, Door (stainless Steel)				$ 225.63
9	2317989		Panel, Decorative		Appelez-nous	-
11	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
12	2005025		Trim-door, Top		Appelez-nous	-
14	2215984S		Trim-door, Btm		Appelez-nous	-
15	2005964		Trim-door, Side		Appelez-nous	-
16	2001230		Washer				$ 12.34
17	W10323601		Bin, Door (3)   (Replaces: 2222775)				$ 92.19
