SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Airflow And Reservoir


15 - Icemaker, Literature

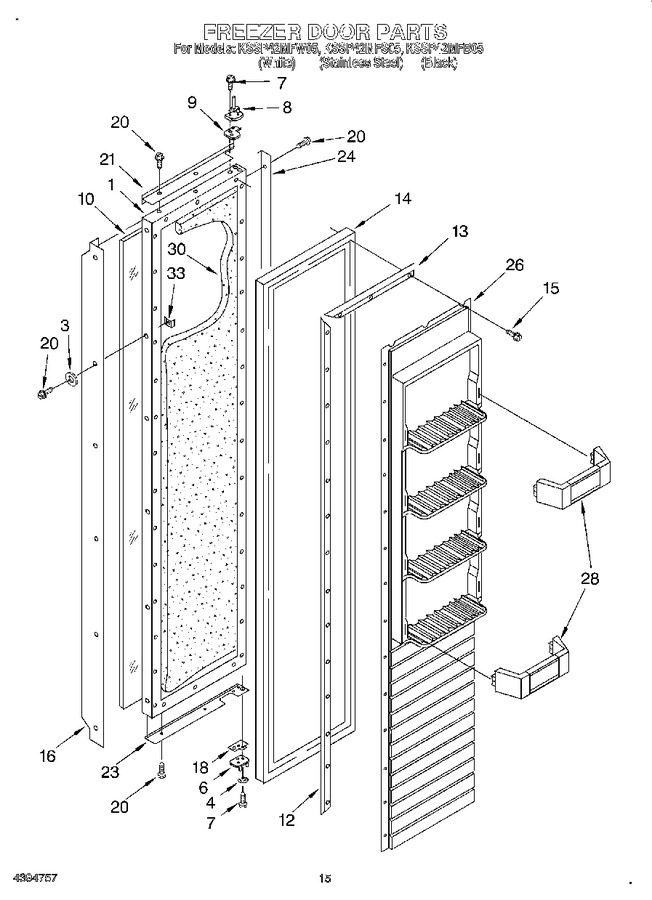

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003877		Freezer Door Panel (includes Insulation)		Appelez-nous	-
3	2001230		Washer				$ 12.34
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2004521		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	4318648		Panel, Decorative (black)		Appelez-nous	-
10	2004954		Panel, Decorative (stainless Steel)		Appelez-nous	-
10	4318656		Panel, Decorative (white)		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188318A		Door Gasket, Magnetic   (Replaces: 2000879)				$ 350.60
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2004637		Handle, Door (stainless Steel)		Appelez-nous	-
16	2003681		Handle, Door (black)		Appelez-nous	-
16	2003682		Handle, Door (white)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP488729		Screw (stainless Steel And Black Models)   (Replaces: 487052)			Immediately	$ 8.28
20	2001208		Screw (white)		Appelez-nous	-
21	2005026		Trim (top) (stainless Steel)		Appelez-nous	-
21	2005023		Trim (top) (white)		Appelez-nous	-
21	2005020		Trim (top) (black)		Appelez-nous	-
23	2004670		Trim (bottom) (white)		Appelez-nous	-
23	2004632		Trim (bottom) (stainless Steel)		Appelez-nous	-
23	2004631		Trim (bottom) (black)		Appelez-nous	-
24	2003678		Trim (side) (white)		Appelez-nous	-
24	2003677		Trim (side) (black)		Appelez-nous	-
24	2004635		Trim (side) (stainless Steel)		Appelez-nous	-
26	2000178		Panel, Interior Door		Appelez-nous	-
28	WP2003128		Shelf Bin (2)   (Replaces: 2003128)				$ 227.24
30	2005057		Insulation		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88

    View Diagram in Separate Window       Print Part List
