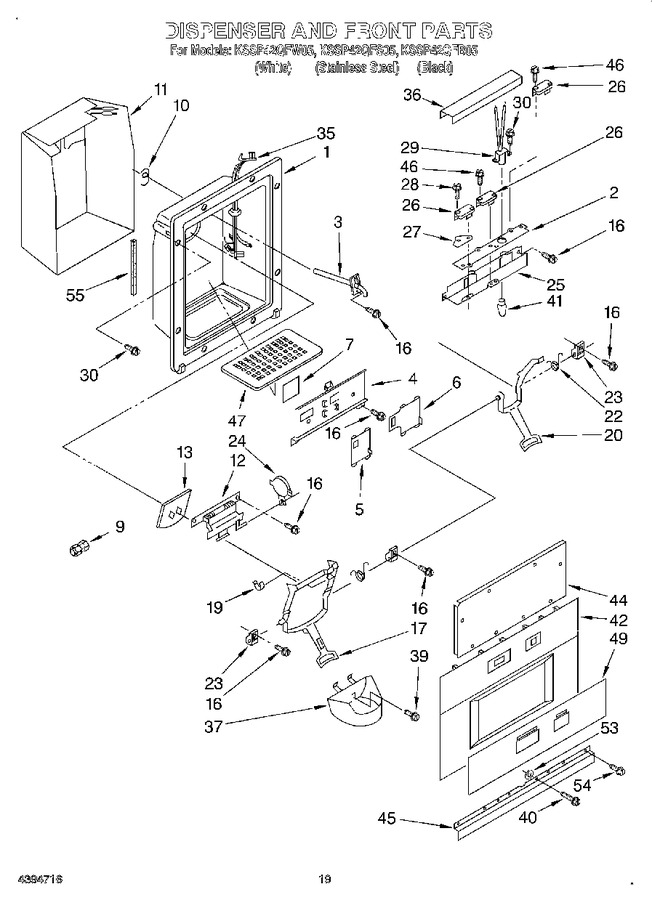

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124715		Housing, Dispenser (white Models)		Appelez-nous	-
1	1107943		Housing, Dispenser (stainless Steel And Black Models)		Appelez-nous	-
2	2147164		Insulator, Bracket Control		Appelez-nous	-
3	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2182193)				$ 276.43
4	2152716		Frame, Slides (stainless Steel And Black Models)		Appelez-nous	-
4	2152717		Frame, Slides (white Models)		Appelez-nous	-
5	2152720		Slide, Cube/crush Switch (white Models)		Appelez-nous	-
5	2152719		Slide, Cube/crush Switch (stainless Steel And Black Models)		Appelez-nous	-
6	2152726		Slide, Light Switch (white Models)		Appelez-nous	-
6	2152724		Slide, Light Switch (stainless Steel And Black Models)		Appelez-nous	-
7	2147172		Heat Shield, Frame		Appelez-nous	-
9	WP4211117		Union   (Replaces: 2150347)				$ 9.96
10	987048		Grommet		Appelez-nous	-
11	2149097		Heater, Ice Dispenser		Appelez-nous	-
12	2147167		Ice Door Mechanism				$ 64.67
13	2147168		Door, Ice				$ 33.13
16	WP3400906		Screw   (Replaces: 489000)				$ 7.84
17	1124718		Lever, Ice Dispenser (white Models)		Appelez-nous	-
17	1127421		Lever, Ice Dispenser (stainless Steel And Black Models)		Appelez-nous	-
19	987917		Bearing, Clip		Appelez-nous	-
20	2159197		Lever, Water Dispenser (white Models)		Appelez-nous	-
20	2159196		Lever, Water Dispenser (stainless Steel And Black Models)		Appelez-nous	-
22	983696		Spring, Lever				$ 21.26
23	983697		Bearing, Lever		Appelez-nous	-
24	WP1120581		Delay Mechanism   (Replaces: 1120581)				$ 213.07
25	2147163		Bracket, Control		Appelez-nous	-
26	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 27.34
27	625834		Insulation, Switch				$ 7.99
28	488361		Screw		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
30	WP489128		Screw   (Replaces: 488500)				$ 10.88
35	2147166		Wiring Harness, Door		Appelez-nous	-
36	2147165		Shield, Wiring		Appelez-nous	-
37	1119035		Guiding, Ice (stainless Steel And Black Models)		Appelez-nous	-
37	1124730		Guiding, Ice (white Models)				$ 19.06
39	488892		Screw (white Models)		Appelez-nous	-
39	489197		Screw (stainless Steel And Black Models)		Appelez-nous	-
40	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
41	WP22002263		Light Bulb   (Replaces: 851389)			Immediately	$ 13.66
42	2002880		Front Cover, Housing (includes No.49) (white)		Appelez-nous	-
42	2002877		Front Cover, Housing (includes No.49) (stainless Steel And Black Models)		Appelez-nous	-
44	2002730		Cover, Dispenser Opening		Appelez-nous	-
45	2003594		Trim, Front (2) (stainless Steel And Black Models)		Appelez-nous	-
45	2003597		Trim, Front (2) (white Models)		Appelez-nous	-
46	489155		Screw,		Appelez-nous	-
47	2152678		Grille, Overflow (stainless Steel And Black Models)		Appelez-nous	-
47	1126120		Grille, Overflow (white Models)		Appelez-nous	-
49	2002892		Overlay, Cover (white Models)		Appelez-nous	-
49	2002889		Overlay, Cover (stainless Steel And Black Models)		Appelez-nous	-
53	487944		Washer (2)		Appelez-nous	-
54	W10759522		Screw (2)   (Replaces: 488568)				$ 7.75
55	482672		Seal		Appelez-nous	-
