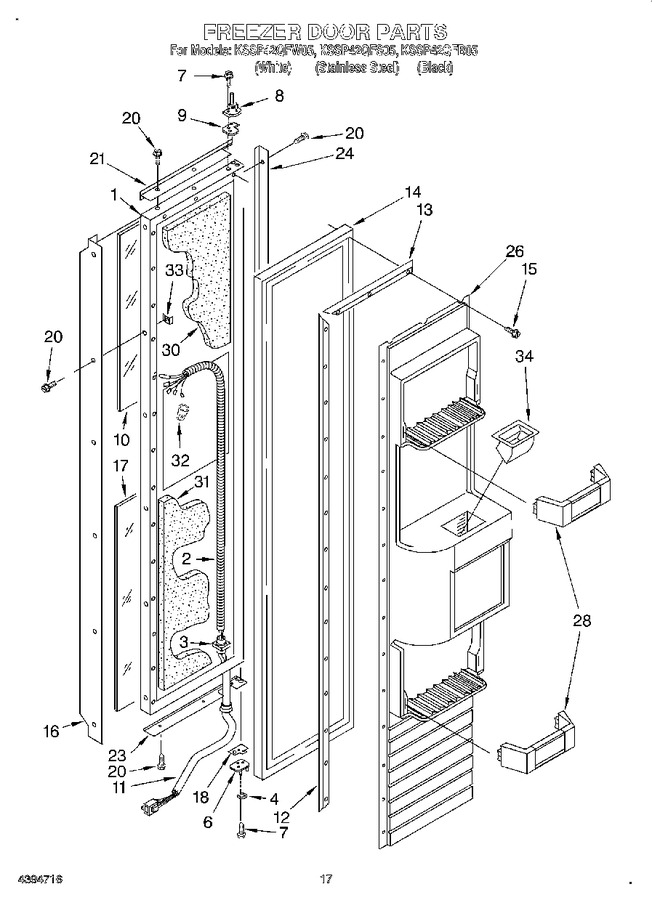

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2004885		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2004521		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
10	4378738		Panel, Decorative Upper (white)		Appelez-nous	-
10	4378754		Panel, Decorative Upper (stainless Steel)		Appelez-nous	-
10	4378739		Panel, Decorative Upper (black)		Appelez-nous	-
11	2004924		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188318A		Door Gasket, Magnetic   (Replaces: 2000879)				$ 333.90
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2003682		Handle, Door (white)		Appelez-nous	-
16	2003681		Handle, Door (black)		Appelez-nous	-
16	2004637		Handle, Door (stainless Steel)		Appelez-nous	-
17	4210604		Panel, Decorative Lower (black)		Appelez-nous	-
17	4210799		Panel, Decorative Lower (white)		Appelez-nous	-
17	4378755		Panel, Decorative Lower (stainless Steel)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP488729		Screw (stainless Steel And Black Models)   (Replaces: 487052)			Immediately	$ 7.79
20	2001208		Screw (white)		Appelez-nous	-
21	2005026		Trim (top) (stainless Steel)		Appelez-nous	-
21	2005020		Trim (top) (black)		Appelez-nous	-
21	2005023		Trim (top) (white)		Appelez-nous	-
23	2004561		Trim (bottom) (black)		Appelez-nous	-
23	2004632		Trim (bottom) (stainless Steel)		Appelez-nous	-
23	2004670		Trim (bottom) (white)		Appelez-nous	-
24	2003678		Trim (side) (white)		Appelez-nous	-
24	2004635		Trim (side) (stainless Steel)		Appelez-nous	-
24	2003677		Trim (side) (black)		Appelez-nous	-
26	2002839		Panel, Interior Door		Appelez-nous	-
28	WP2003128		Shelf Bin (2)   (Replaces: 2003128)				$ 216.42
30	2005061		Insulation, Upper		Appelez-nous	-
31	2005062		Insulation, Lower		Appelez-nous	-
32	547217		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
34	2002733		Ice Chute		Appelez-nous	-
