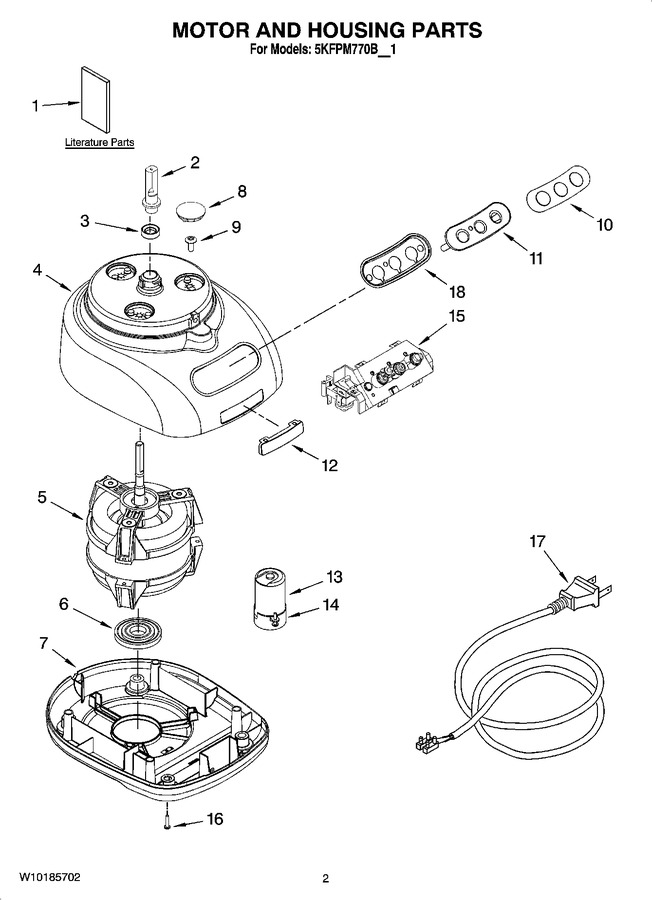

01 - Motor And Housing Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212058 | Use & Care Guide |
|
- | |||||
| 1 | W10185702 | Repair Parts List |
|
- | |||||
| 2 | W10187053 | Sleeve, Motor Shaft |
|
$ 5.83 | |||||
| 3 | 8211828 | Seal, Oil |
|
$ 33.19 | |||||
| 4 | 8212069 | Housing, Motor (empire Red) |
|
- | |||||
| 4 | 8212070 | Housing, Motor (almond Creme) |
|
- | |||||
| 4 | 8211823 | Housing, Motor (nickel) |
|
- | |||||
| 4 | W10221703 | Housing, Motor (pearl Metallic) |
|
- | |||||
| 4 | 8212068 | Housing, Motor (white) |
|
- | |||||
| 5 | 8212079 | Motor |
|
- | |||||
| 6 | 8212091 | Grommet, Motor |
|
- | |||||
| 7 | 8212083 | Base, Housing (almond Creme) |
|
- | |||||
| 7 | 8212081 | Base, Housing (white) |
|
- | |||||
| 7 | 8212080 | Base, Housing (onyx Black) |
|
- | |||||
| 7 | 8212082 | Base, Housing (empire Red) |
|
- | |||||
| 8 | 8211827 | Cover, Screw (onyx Black) |
|
- | |||||
| 8 | 8212084 | Cover, Screw (white) |
|
- | |||||
| 8 | 8212086 | Cover, Screw (almond Creme) |
|
- | |||||
| 8 | 8212085 | Cover, Screw (empire Red) |
|
- | |||||
| 9 | 8211586 | Screw, Motor Locking |
|
- | |||||
| 10 | 8212087 | Overlay, Switch (black) |
|
- | |||||
| 10 | 8212088 | Overlay, Switch (silver) |
|
- | |||||
| 11 | 8212093 | Cover, Panel Switch (transparent) |
|
- | |||||
| 11 | 8212094 | Cover, Panel Switch (silver) |
|
- | |||||
| 12 | 8211842 | Nameplate |
|
- | |||||
| 13 | 8212089 | Capacitor |
|
- | |||||
| 14 | 8211607 | Clip, Capacitor |
|
- | |||||
| 15 | 8212090 | Relay & Switch Assembly |
|
- | |||||
| 16 | 8211845 | Foot (black) |
|
$ 5.83 | |||||
| 16 | 8211844 | Foot (white) |
|
- | |||||
| 17 | 8212073 | Cord, Power (black) |
|
- | |||||
| 17 | 8212074 | Cord, Power (white) |
|
- | |||||
| 18 | 8212095 | Bezel, Switch Panel |
|
- |
