SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

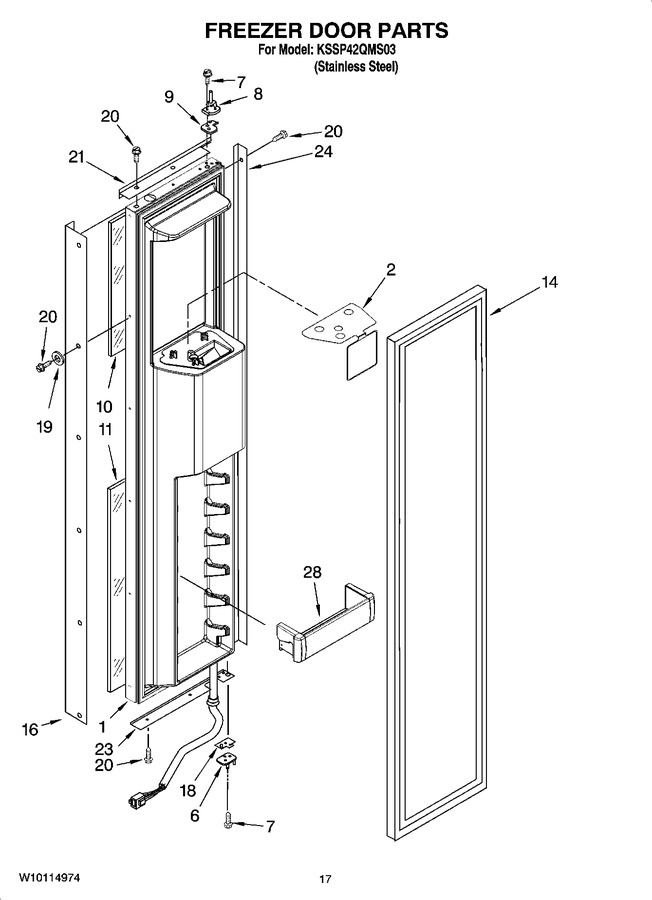

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320571B		Freezer Door Panel (includes Insulation) (black)		Appelez-nous	-
2	2304896		Safety Barrier		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
10	2209356		Panel, Decorative Upper		Appelez-nous	-
11	2209353		Panel, Decorative Lower		Appelez-nous	-
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
16	2256472S		Handle, Door (stainless Steel)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
19	2001230		Washer				$ 12.34
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005026		Trim (top) (stainless Steel)		Appelez-nous	-
23	2215985S		Trim (bottom) (stainless Steel)		Appelez-nous	-
24	2005964		Trim (side) (stainless Steel)		Appelez-nous	-
28	W10323602		Bin, Shelf F.c.(3)   (Replaces: 2222776)				$ 98.03
