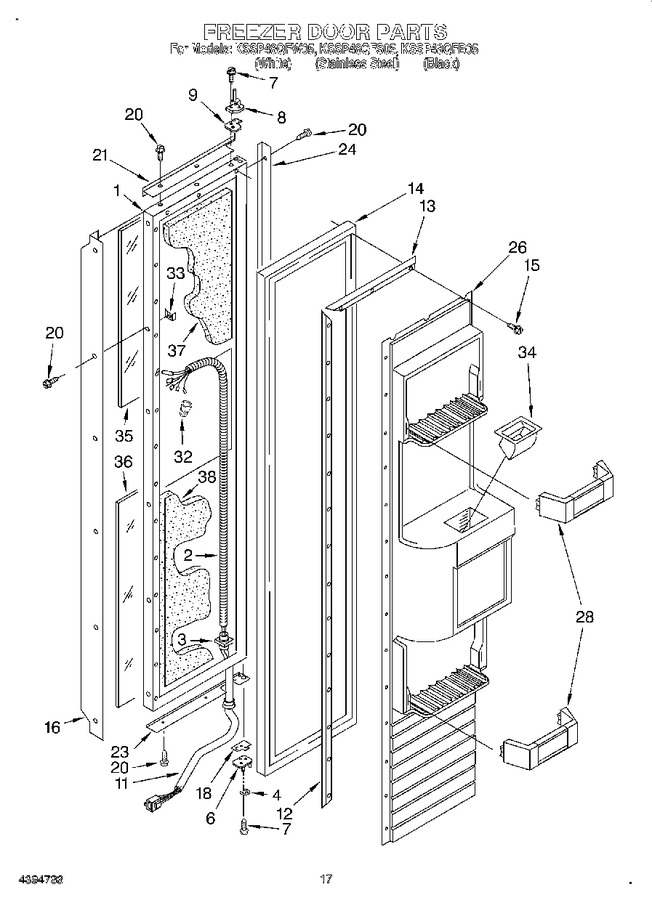

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2004886		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2004521		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
11	2004924		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 332.23
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2004637		Handle, Door (stainless Steel)		Appelez-nous	-
16	2003682		Handle, Door (white)		Appelez-nous	-
16	2003681		Handle, Door (black)		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	2001208		Screw (white)		Appelez-nous	-
20	WP488729		Screw (stainless Steel)   (Replaces: 487052)			Immediately	$ 8.28
21	2005021		Trim (top) (black)		Appelez-nous	-
21	2005024		Trim (top) (white)		Appelez-nous	-
21	2005027		Trim (top) (stainless Steel)		Appelez-nous	-
23	2004633		Trim (bottom) (stainless Steel)		Appelez-nous	-
23	2004671		Trim (bottom) (white)		Appelez-nous	-
23	2004562		Trim (bottom) (black)		Appelez-nous	-
24	2003678		Trim (side) (white)		Appelez-nous	-
24	2004635		Trim (side) (stainless Steel)		Appelez-nous	-
24	2003677		Trim (side) (black)		Appelez-nous	-
26	2002840		Panel, Interior Door		Appelez-nous	-
28	2003129		Shelf Bin (2)				$ 57.57
32	547217		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
34	2002733		Ice Chute		Appelez-nous	-
35	4378742		Panel, Decorative Upper (white)		Appelez-nous	-
35	4378743		Panel, Decorative Upper (black)		Appelez-nous	-
35	4378760		Panel, Decorative Upper (stainless Steel)		Appelez-nous	-
36	4318645		Panel, Decorative Lower (black)		Appelez-nous	-
36	4318653		Panel, Decorative Lower (white)		Appelez-nous	-
36	4318751		Panel, Decorative Lower (stainless Steel)		Appelez-nous	-
37	2005063		Insulation		Appelez-nous	-
38	2005064		Insulation		Appelez-nous	-
