SELECT A DIAGRAM

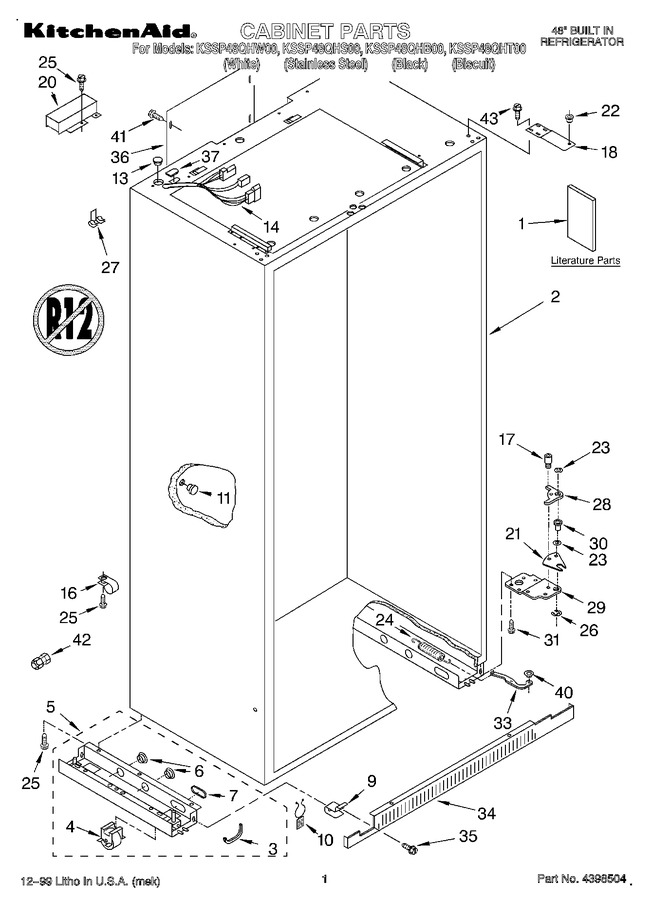

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Motor And Ice Container


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2006136		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2006653		Literature Parts (energy Label)		Appelez-nous	-
1	LIT2005930		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2006137		Literature Parts (installation Instructions)		Appelez-nous	-
2	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2005004		Grommet, Tube Crossover		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 43.18
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 364.76
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 363.65
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
9	2006442		Mounting Stud, Grill		Appelez-nous	-
10	2005237		Clip, Wire		Appelez-nous	-
11	1112849		Cap, Grommet		Appelez-nous	-
13	1113122		Grommet, Wiring		Appelez-nous	-
14	2006754		Wiring Harness, Cabinet		Appelez-nous	-
16	488946		Tube, Clamp				$ 20.45
17	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 11.10
18	2257644		Hinge (top)   (Replaces: 2005295)				$ 169.50
20	1112805		Guard, Wiring		Appelez-nous	-
21	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.96
22	2002903		Bushing				$ 34.41
23	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
24	2004567		Spring, Door Closure (blue)		Appelez-nous	-
24	2004566		Spring, Door Closure (red)		Appelez-nous	-
25	W11624204		Screw   (Replaces: 486194)				$ 14.02
26	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.17
27	1113227		Fastener (3)		Appelez-nous	-
28	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
29	WP2006780		Hinge (bottom) (refrigerator Side)   (Replaces: 2006733)				$ 285.08
29	W10527053		Hinge (bottom) (freezer Side)   (Replaces: 2006732)				$ 130.70
30	WP2302876		Bushing, Adjustable   (Replaces: 2004992)			Immediately	$ 86.40
31	WP8204624		Screw   (Replaces: 2001415)				$ 16.65
33	2004516		Linkage, Door Closure		Appelez-nous	-
34	2004535		Grille Base, Front (white)		Appelez-nous	-
34	2004532		Grille Base, Front (black)		Appelez-nous	-
35	489238		Screw		Appelez-nous	-
36	2004512		Cover, Rear		Appelez-nous	-
37	2207518		Grommet, Wiring		Appelez-nous	-
40	2004565		Bushing, Door Closure				$ 42.64
41	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
42	WP4211117		Union   (Replaces: 2150347)				$ 9.96
43	WP8204624		Screw (4)   (Replaces: 2001415)				$ 16.65

    View Diagram in Separate Window       Print Part List
