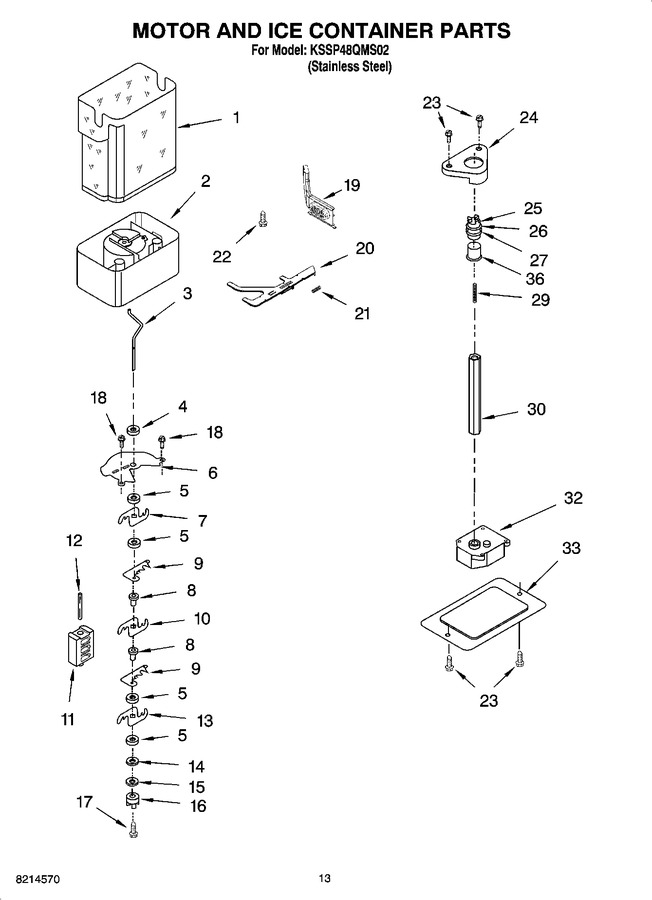

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222970		Ice Bin   (Replaces: 2222970)			Immediately	$ 236.39
2	2222969		Crusher Bin		Appelez-nous	-
3	2258222		Auger		Appelez-nous	-
4	2258220		Washer, Auger				$ 8.02
5	WP1119007		Spacer, Flat (6)   (Replaces: 1119007)				$ 13.29
6	2255460		Cover, Crusher				$ 22.88
7	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 81.90
8	WP1119005		Spacer, Step (2)   (Replaces: 1119005)				$ 10.57
9	2257020		Blade, Fixed				$ 59.91
10	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 81.90
11	2198602		Block, Blade		Appelez-nous	-
12	489229		Roll Pin				$ 43.62
13	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 81.78
14	489235		Washer, Plain				$ 8.05
15	WP2198661		Washer, Coupling   (Replaces: 2198661)				$ 10.31
16	WP2220457		Coupling, Top   (Replaces: 2220457)			Immediately	$ 32.33
17	WP8281164		Screw   (Replaces: 8281164)				$ 10.20
18	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 7.36
19	WP2252265		Button, Bin   (Replaces: 2252265)				$ 41.89
20	2252208		Latch, Bin		Appelez-nous	-
21	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 6.80
22	2198671		Screw (2)				$ 9.83
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
24	2212369		Holder				$ 22.63
25	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 36.94
26	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 11.31
27	WP2212370		Washer   (Replaces: 2212370)				$ 22.82
29	W10852956		Spring   (Replaces: 2198607)			Immediately	$ 19.26
30	WP2188917		Drive Shaft   (Replaces: 999536)				$ 94.67
32	2212363		Dispenser, Motor				$ 176.95
33	2222862		Cover				$ 42.44
36	WP2212365		Sleeve, Coupling   (Replaces: 2212365)				$ 28.36
