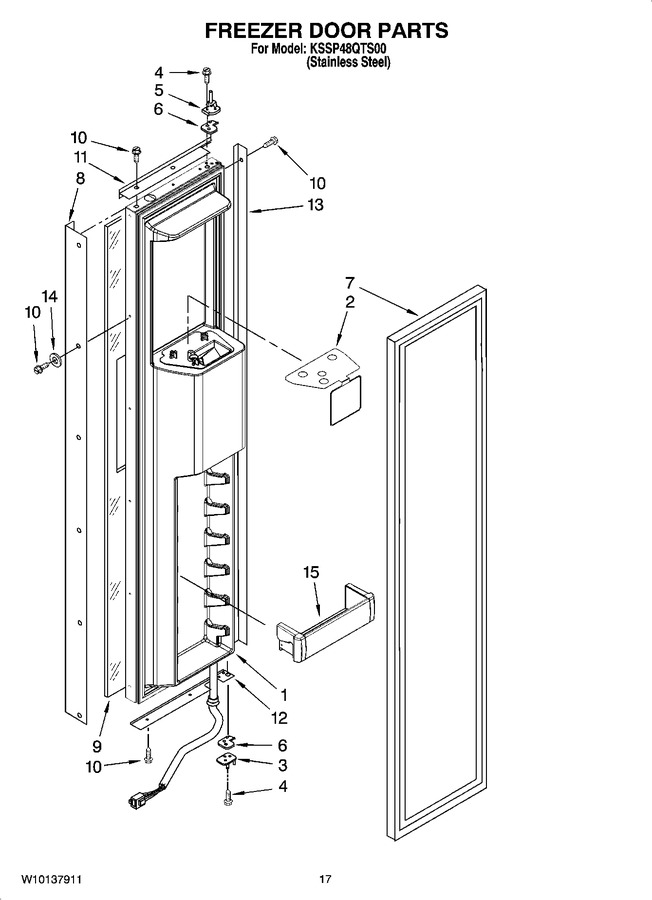

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130862		Freezer Door Panel (includes Item 14)		Appelez-nous	-
2	2304896		Saftey Barrier		Appelez-nous	-
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
8	2316844S		Handle, Door (stainless Steel)				$ 225.63
9	2317991		Panel, Decorative		Appelez-nous	-
10	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
11	2005027		Trim-door, Top		Appelez-nous	-
12	2215986S		Trim-door, Btm		Appelez-nous	-
13	2005964		Trim-door, Side		Appelez-nous	-
14	2001230		Washer				$ 12.34
15	W11590561		Bin, Door (3)   (Replaces: 2222777)				$ 94.23

    View Diagram in Separate Window       Print Part List
