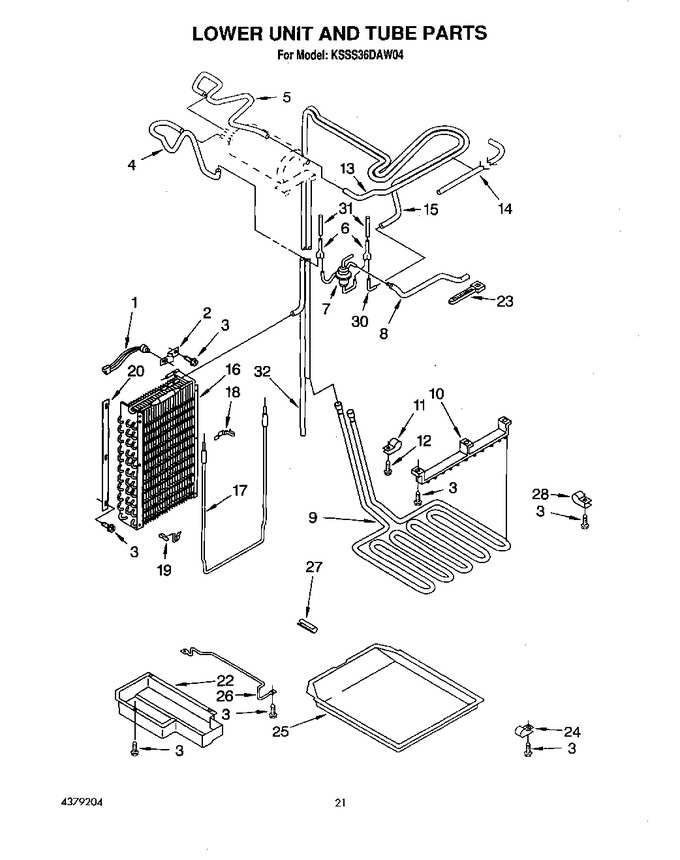

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4387499 | Defrost Bi-metal (Replaces: 2000528) |
|
$ 120.86 | |||||
| 2 | 1113043 | Clamp, Bi-metal |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | 1113293 | Tube, Connect (suction) |
|
- | |||||
| 5 | 1113209 | Tube, Connect (discharge) |
|
- | |||||
| 6 | 1113296 | Tube, Flow Divider (2) |
|
- | |||||
| 7 | 1113292 | Valve, Fluid Control |
|
- | |||||
| 8 | 2001727 | Tube, Connect (drier) |
|
- | |||||
| 9 | 2000754 | Heater, Drain Pan |
|
- | |||||
| 10 | 1113062 | Hanger, Heater |
|
- | |||||
| 11 | 1113105 | Bracket, Heater |
|
- | |||||
| 12 | WP488163 | Screw, 8 X 1 (Replaces: 487534) |
|
$ 7.54 | |||||
| 13 | 2000857 | Tube, Discharge |
|
- | |||||
| 14 | 2000860 | Sleeve |
|
- | |||||
| 15 | 2002106 | Heat Exchanger |
|
- | |||||
| 16 | WPW10122127 | Evaporator (Replaces: 1113040) |
|
$ 341.83 | |||||
| 17 | 2000630 | Heater, Defrost |
|
$ 76.79 | |||||
| 18 | 1113048 | Clamp, Heater (2) |
|
- | |||||
| 19 | 1108431 | Clamp, Heater (2) |
|
- | |||||
| 20 | 1112844 | Gasket, Evaporator |
|
- | |||||
| 22 | 1113070 | Guard, Hook-up |
|
- | |||||
| 23 | 851095 | Strap (7) |
|
- | |||||
| 24 | 488946 | Clamp, Wiring |
|
$ 20.45 | |||||
| 25 | WP2001264 | Drain Pan (Replaces: 2001264) |
|
$ 263.98 | |||||
| 26 | 1113206 | Bracket, Drain Pan (left) |
|
- | |||||
| 26 | 1113207 | Bracket, Drain Pan (right) |
|
- | |||||
| 27 | WP2158826 | Dampener (Replaces: 513942) |
|
$ 1.73 | |||||
| 28 | 934011 | Clip, Water Tube |
|
- | |||||
| 30 | 1113384 | Tube, Connect (suction) |
|
- | |||||
| 31 | 1113297 | Tube (2) |
|
- | |||||
| 32 | 1113096 | Tube, Condenser Inlet |
|
- |
