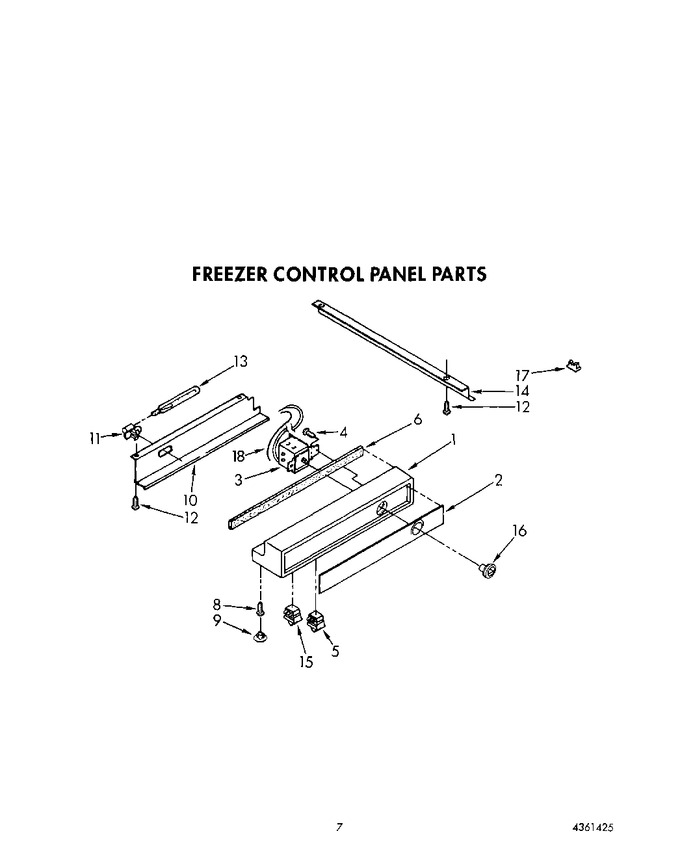

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112595		Control Panel		Appelez-nous	-
2	1113963		Inlay, Control Panel		Appelez-nous	-
3	WP1113466		Thermostat & Barrier Assembly   (Replaces: 1113466)				$ 234.09
4	488974		Screw (2)		Appelez-nous	-
5	WP4387911		Switch, Rocker Arm (dispenser Motor)   (Replaces: 851387)			Immediately	$ 39.66
6	1113132		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	2000153		Hole Plug (3)		Appelez-nous	-
10	1113767		Shield, Control Panel		Appelez-nous	-
11	1112613		Socket, Light		Appelez-nous	-
12	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
13	WP548049		Light Bulb   (Replaces: 547225)				$ 86.35
14	1112707		Channel, Wiring		Appelez-nous	-
15	W11384469		Switch, Rocker Arm (light)   (Replaces: 1108112)			Immediately	$ 37.23
16	1112592		Knob, Thermostat		Appelez-nous	-
17	1115375		Clip, Wiring				$ 11.15
18	1105570		Thermostat Barrier		Appelez-nous	-
