SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Refrigerator Control Panel


04 - Refrigerator Liner


05 - Freezer Control Panel


06 - Freezer Liner


07 - Freezer Shelf


08 - Refrigerator Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker, Lit/optional


17 - Ice Container

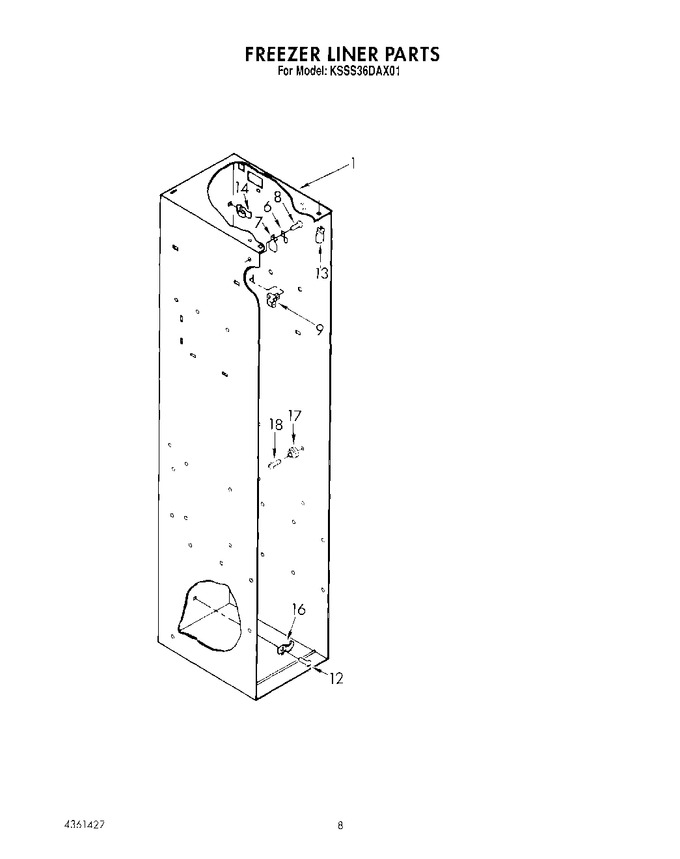

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
6	538533		Support Clip, Icemaker (2)		Appelez-nous	-
7	2000193		Grommet, Screw (2)		Appelez-nous	-
8	WP681414		Screw, 10-12 X 3/8 (2)   (Replaces: 488552)			Immediately	$ 8.47
9	992720		Stud, Support (4)		Appelez-nous	-
12	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
13	1112591		Spacer, Control Panel (3)		Appelez-nous	-
14	2215823		Clip, Air Duct (4)   (Replaces: 842534)				$ 10.94
16	1112260		Support,evaporator		Appelez-nous	-
17	658944		Stud, Shelf (8)		Appelez-nous	-
18	487559		Screw, 8-15 X 1-1/4 (8)		Appelez-nous	-
