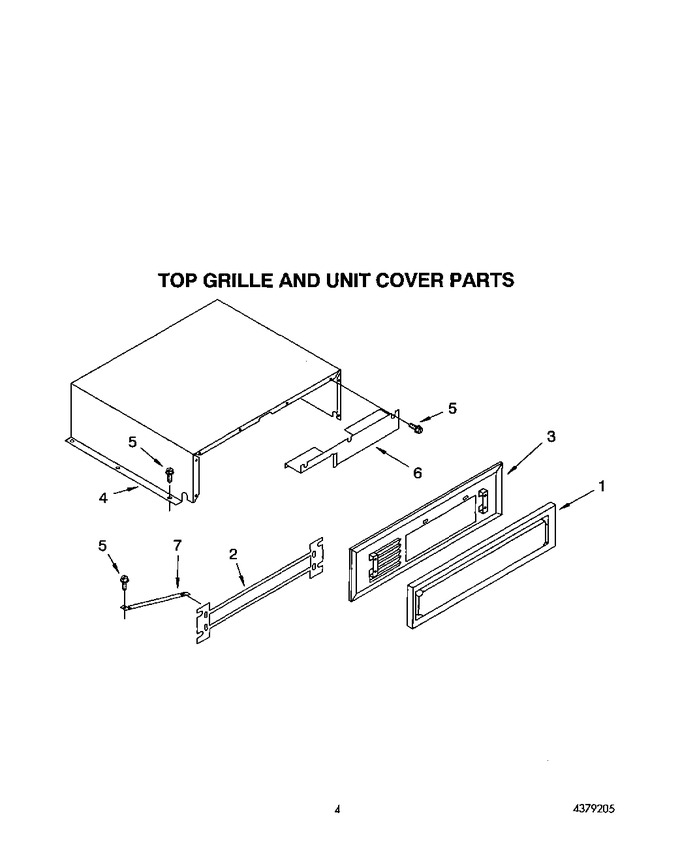

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001315		Decorative Panel Assembly		Appelez-nous	-
2	1113313		Back Up Panel		Appelez-nous	-
3	2002115		Top Grille Assembly		Appelez-nous	-
4	2001088		Cover, Unit		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
6	1113300		Cover, Component Assembly		Appelez-nous	-
7	1113317		Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
