SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Top Grille And Unit Cover


04 - Refrigerator Liner


05 - Freezer Liner


06 - Freezer Shelf


07 - Refrigerator Shelf


08 - Refrigerator Door


09 - Freezer Door


10 - Dispenser And Front


11 - Upper Unit


12 - Lower Unit And Tube


13 - Air Flow And Reservoir


14 - Icemaker, Lit/optional


15 - Ice Container


16 - Freezer Control Panel


17 - Refrigerator Control Panel

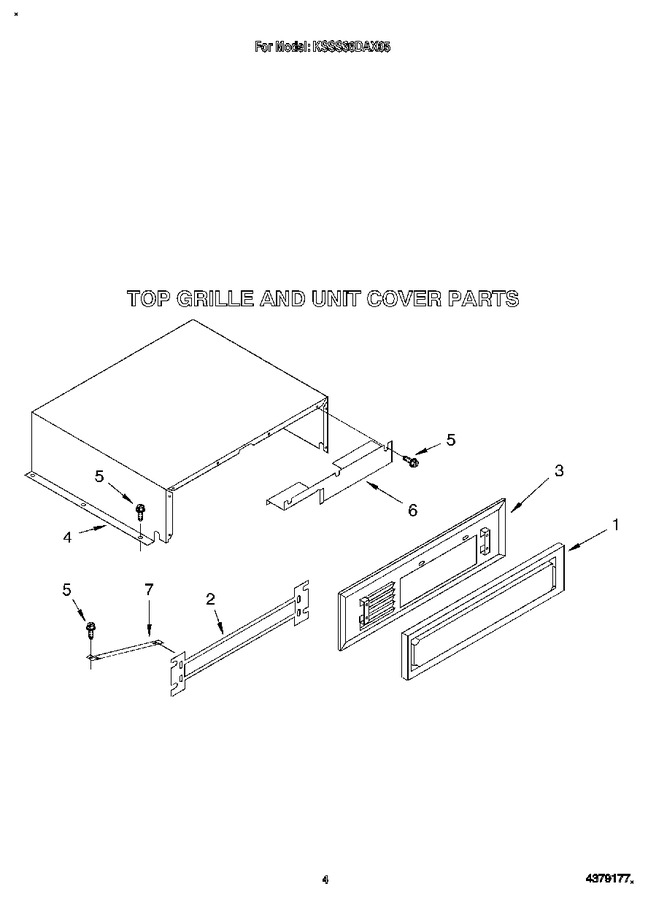

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001315		Decorative Panel Assembly		Appelez-nous	-
2	1113313		Back Up Panel		Appelez-nous	-
3	2001577		Top Grille Assembly		Appelez-nous	-
4	2001088		Cover, Unit		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
6	1113300		Cover, Component Assembly		Appelez-nous	-
7	1113317		Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
