SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Top Grille And Unit Cover


04 - Refrigerator Liner


05 - Freezer Liner


06 - Freezer Shelf


07 - Refrigerator Shelf


08 - Refrigerator Door


09 - Freezer Door


10 - Dispenser And Front


11 - Upper Unit


12 - Lower Unit And Tube


13 - Air Flow And Reservoir


14 - Icemaker, Literature


15 - Ice Container


16 - Freezer Control Panel


17 - Refrigerator Control Panel

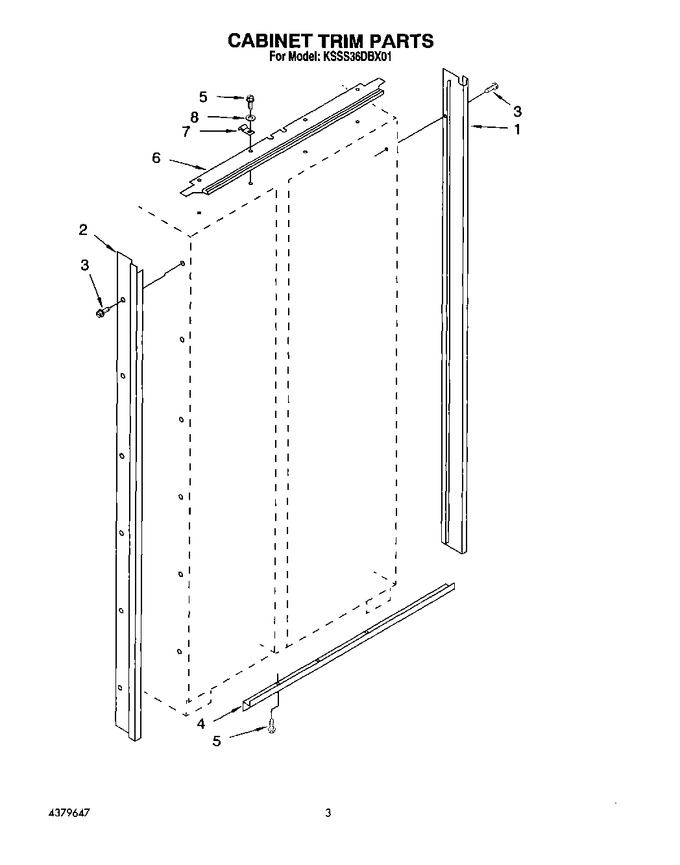

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000321		Cabinet, Trim R.s		Appelez-nous	-
2	2000322		Cabinet, Trim L.s		Appelez-nous	-
3	2001297		Screw		Appelez-nous	-
4	1112800		Cabinet, Trim (bottom)		Appelez-nous	-
5	WPW10141625		Screw (8)   (Replaces: 488649)				$ 22.22
6	2001309		Cabinet, Trim Top		Appelez-nous	-
7	2000007		Retainer, Unit Base (2)		Appelez-nous	-
8	487944		Washer (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
