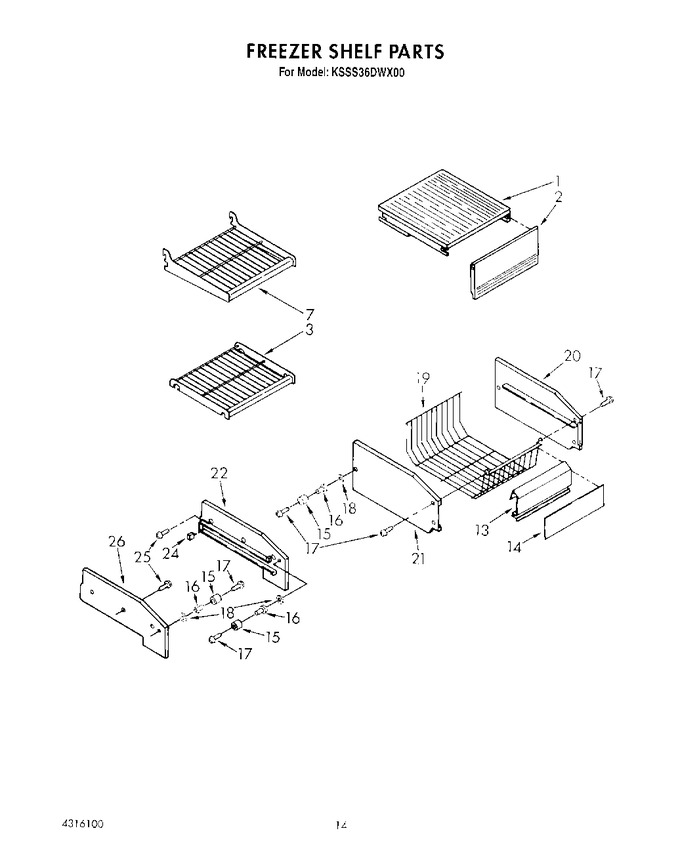

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112365		Solid Shelf		Appelez-nous	-
2	1112393		Front, Ice Compartment		Appelez-nous	-
3	1113564		Shelf, Fixed (2)		Appelez-nous	-
7	1113566		Shelf, Cantilever		Appelez-nous	-
13	1112315		Front, Basket		Appelez-nous	-
14	1112320		Overlay, Front		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 11.36
18	488307		Washer		Appelez-nous	-
19	1112335		Basket (small)		Appelez-nous	-
20	1112312		Side, Basket (left Side)		Appelez-nous	-
21	1112313		Side, Basket (right Side)		Appelez-nous	-
22	1112296		Basket Spacer, Right Side (2)		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
26	1112295		Basket Spacer, Left Side (2)		Appelez-nous	-
