SELECT A DIAGRAM

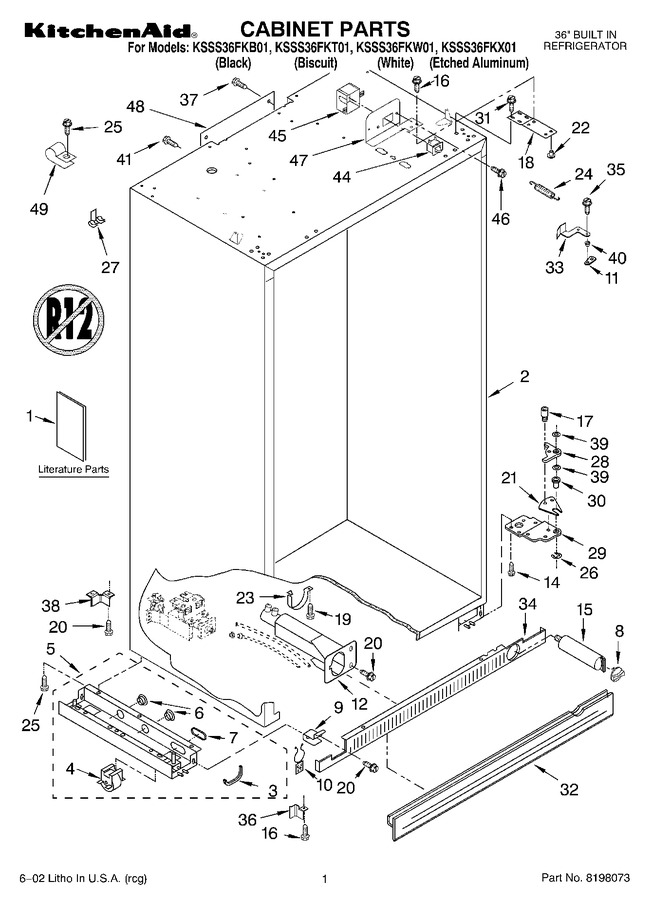

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Shelf


04 - Refrigerator Liner


05 - Control Panel


06 - Top Grille And Unit Cover


07 - Refrigerator Shelf


08 - Freezer Liner And Air Flow


09 - Refrigerator Door


10 - Freezer Door


11 - Upper Unit


12 - Lower Unit And Tube


13 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2221223		Literature Parts (energy Label)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2215852		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT2254714		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2254722		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	2005004		Grommet, Tube Crossover		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 45.34
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 381.83
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
8	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 58.51
8	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 55.86
8	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 12.47
9	2006442		Mounting Stud, Grill		Appelez-nous	-
10	2005237		Clip, Wire		Appelez-nous	-
11	2005783		Cam, Door Closer				$ 26.20
12	WP2209022		Housing, Water Filter   (Replaces: 2209022)			Immediately	$ 246.56
14	3400525		Screw				$ 12.83
15	EDR5RXD1B		Filter, Water   (Replaces: 2203221)			Immediately	$ 49.99
16	WP489399		Screw   (Replaces: 489399)				$ 7.30
17	WP2005378		Screw, Door Stop   (Replaces: 2005378)				$ 12.02
18	2257644		Hinge (top)   (Replaces: 2221134)				$ 177.98
19	WP489478		Screw   (Replaces: 489478)				$ 8.18
20	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
21	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 8.39
22	2002903		Bushing				$ 34.41
23	2209090		Clamp, Filter Housing		Appelez-nous	-
24	WP2004517		Spring, Door Closure (2)   (Replaces: 2004517)			Immediately	$ 95.43
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.78
27	1113227		Fastener (3)		Appelez-nous	-
28	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
29	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 299.33
29	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 137.73
30	WP2302876		Bushing, Adjustable   (Replaces: 2004992)			Immediately	$ 90.72
31	WP8204624		Screw   (Replaces: 2001415)				$ 17.48
32	2209024W		Skirt, Grille- Bottom (white)		Appelez-nous	-
32	2209024T		Skirt, Grille- Bottom (biscuit)		Appelez-nous	-
32	WP2209024B		Skirt-grille, Bottom (black)   (Replaces: 2209024B)				$ 169.87
33	WPW10121046		Extension Arm, Door Closer (left)   (Replaces: 2221094)			Immediately	$ 83.71
33	WP2307857		Extension Arm, Door Closer (right)   (Replaces: 2221095)			Immediately	$ 79.30
34	2209425B		Grille Bottom, Front (black)		Appelez-nous	-
34	2209425T		Grille Bottom, Front (biscuit)		Appelez-nous	-
34	2209425W		Grille Bottom, Front (white)		Appelez-nous	-
35	2005921		Screw				$ 7.65
36	2006616		Bracket, Support Base (front) (left)				$ 91.53
36	2006556		Bracket, Support Base (front) (right)				$ 37.20
37	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
38	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
39	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.76
40	WP2316859		Bushing, Extension Arm   (Replaces: 2006960)			Immediately	$ 54.20
41	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
44	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 40.09
44	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 39.09
45	2215938		Cover, Switch (2)				$ 94.78
46	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 11.87
47	W10741111		Bracket, Switch (right)   (Replaces: 2221097)				$ 67.37
47	2221096		Bracket, Switch (left)				$ 97.86
48	2209449		Cover, Rear		Appelez-nous	-
49	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
