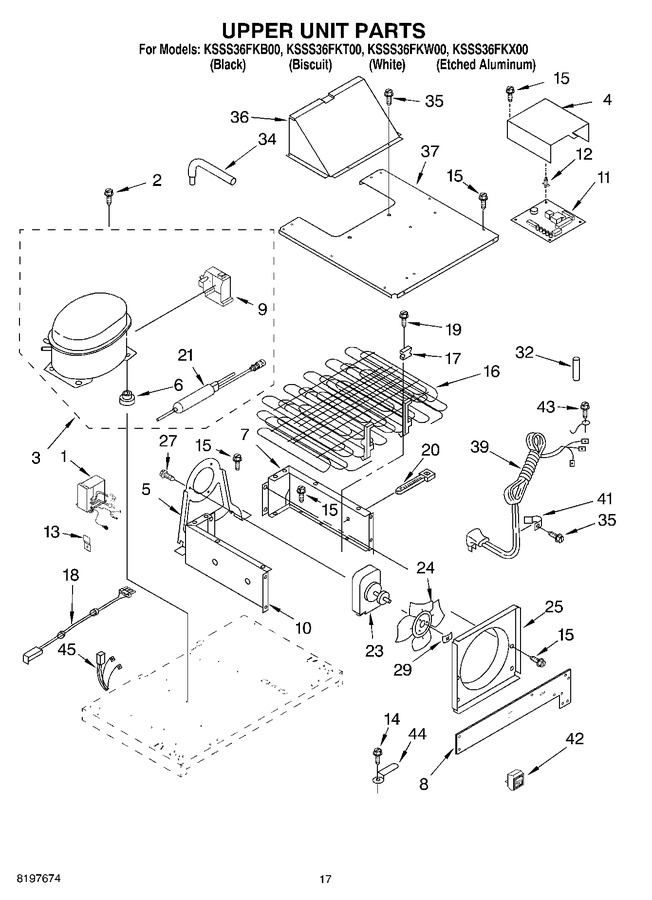

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10629033 | Inverter Box (Replaces: 2209324) |
|
Immediately | $ 443.45 | ||||
| 2 | 876811 | Screw, Compressor Mounting (4) (Replaces: 489373) |
|
$ 7.79 | |||||
| 3 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 3 | W10841139 | Compressor (includes Items 6, 9 & 21) (also Order (Replaces: 2208937) |
|
Immediately | $ 505.51 | ||||
| 4 | 2199929 | Housing, Control Board |
|
- | |||||
| 5 | 2215641 | Bracket, Fan Motor |
|
- | |||||
| 6 | 876811 | Grommet, Mounting (Replaces: 1100826) |
|
$ 7.79 | |||||
| 7 | 2209038 | Shroud, Condenser (right) |
|
- | |||||
| 8 | 2215665 | Panel, Condenser Front |
|
- | |||||
| 9 | 2215676 | Terminal Cover |
|
$ 94.36 | |||||
| 10 | 2209037 | Shroud, Condenser (left) |
|
- | |||||
| 11 | W10823805 | Control Board (Replaces: 2221501) |
|
$ 608.36 | |||||
| 12 | WP2203075 | Spacer (5) (Replaces: 2203075) |
|
Immediately | $ 18.81 | ||||
| 13 | 2256328 | Bracket, Inverter Box (Replaces: 2209493) |
|
- | |||||
| 14 | 486899 | Screw |
|
- | |||||
| 15 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 16 | 2209062 | Condenser |
|
- | |||||
| 17 | 943447 | Grommet (4) |
|
- | |||||
| 18 | 2221009 | Wire, Jumper |
|
- | |||||
| 19 | 487522 | Screw |
|
- | |||||
| 20 | 851095 | Wire Tie (2) |
|
- | |||||
| 21 | W10843121 | Drier (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 23 | W10181323 | Motor, Fan (Replaces: 2206036) |
|
Immediately | $ 303.29 | ||||
| 24 | 2190685 | Blade, Fan |
|
$ 52.00 | |||||
| 25 | 2003169 | Orifice, Fan |
|
- | |||||
| 27 | 8281160 | Screw |
|
- | |||||
| 29 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 32 | 2000645 | Sleeve, Condenser |
|
- | |||||
| 34 | W10528578 | Process, Tube (Replaces: 2194319) |
|
$ 39.82 | |||||
| 35 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 36 | 2209495 | Cover, Fan |
|
- | |||||
| 37 | 2215628 | Cover, Condenser |
|
- | |||||
| 39 | 2003381 | Service Cord |
|
- | |||||
| 41 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 42 | WP2266802 | Switch, Power Disconnect (Replaces: 1113229) |
|
$ 109.08 | |||||
| 43 | 303776 | Screw, Ground (Replaces: 488879) |
|
- | |||||
| 44 | 653035 | Clip, Cord Plug |
|
- | |||||
| 45 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 45 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 45 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 45 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 45 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 45 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 45 | 2215944 | Wiring Harness, Unit Compartment |
|
- | |||||
| 45 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 |
