View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Motor And Housing Parts

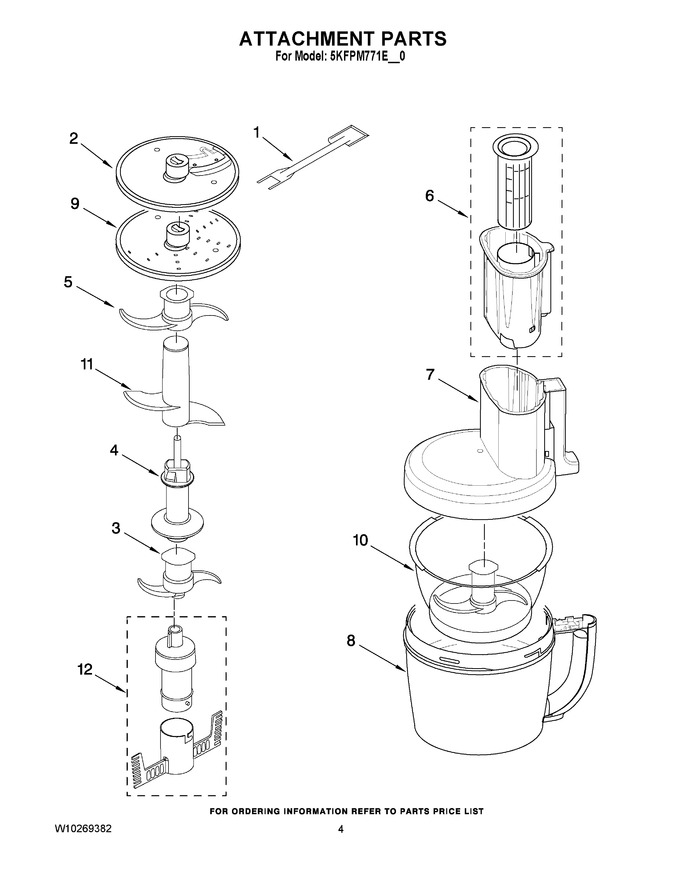

02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8211760 | Spatula |
|
$ 24.64 | |||||
| 2 | W10274087 | Disc,slicing (4 Mm) |
|
$ 59.62 | |||||
| 2 | W10274086 | Disc,slicing (2 Mm) |
|
- | |||||
| 3 | 8212012 | Mini Blade |
|
$ 23.14 | |||||
| 4 | 8211858 | Adapter, Shaft & Disc |
|
- | |||||
| 5 | W10187050 | Blade, Multipurpose |
|
$ 28.68 | |||||
| 6 | 8212020 | Pusher, Food |
|
$ 28.93 | |||||
| 7 | 8212062 | Cover, Work Bowl (white) |
|
- | |||||
| 8 | 8212065 | Bowl, Work (white) |
|
- | |||||
| 9 | W10274088 | Disc, Shredding W/plastic Hub (4 Mm) |
|
$ 52.00 | |||||
| 10 | 8211926 | Bowl, Mini |
|
$ 64.39 | |||||
| 11 | W10187052 | Blade, Dough |
|
$ 28.68 | |||||
| 12 | W10187049 | Whip, Egg |
|
- | |||||
| NI | W10186743 | Accessory Box |
|
- | |||||
| NI | 8211928 | Bowl, Chef`s |
|
$ 40.01 | |||||
| NI | W10186748 | Presser, Citrus |
|
- | |||||
| NI | 8211935 | Disc, Julienne |
|
$ 66.49 |
