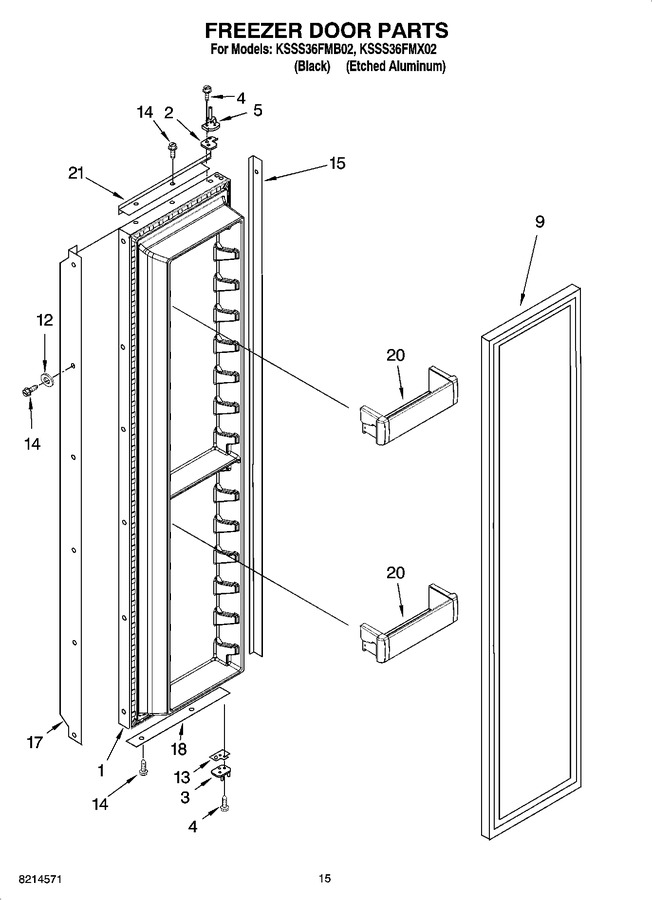

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252326		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2256381		Spacer, Top Door				$ 24.49
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top Top & Bottom   (Replaces: 2266854)				$ 312.50
9	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
12	2001230		Washer, Nylon				$ 12.34
13	2257637		Spacer, Door (bottom)				$ 15.45
14	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
14	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
15	2005966		Trim, Side Door (black)		Appelez-nous	-
15	2005962		Trim, Side Door (etched Aluminum)		Appelez-nous	-
17	2256472		Handle, Door (etched Aluminum)		Appelez-nous	-
17	2256472B		Handle, Door (black)		Appelez-nous	-
18	2215984B		Trim, Bottom Door (black)		Appelez-nous	-
18	2215984		Trim, Bottom Door (etched Aluminum)		Appelez-nous	-
20	W10323601		Bin, Shelf (6)   (Replaces: 2222775)				$ 92.19
21	2005019		Trim, Top Door (etched Aluminum)		Appelez-nous	-
21	2005885		Trim, Top Door (black)		Appelez-nous	-
