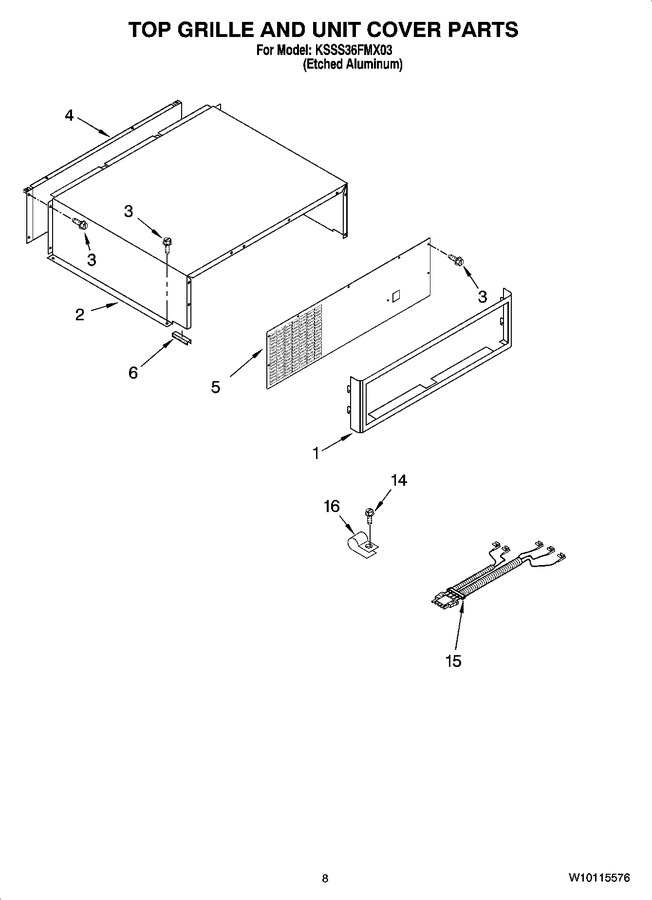

06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257401X		Top Grille Assembly (etched Aluminum)		Appelez-nous	-
2	2259320		Cover, Unit		Appelez-nous	-
3	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
4	2256466		Panel, Back				$ 327.22
5	2320678		Cover-unit, Front		Appelez-nous	-
6	2215910		Grommet, Flexible				$ 94.32
14	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
15	2310194		Wire Assembly, Rc/fc Light Switch				$ 69.47
16	489348		Clamp, Tube		Appelez-nous	-
