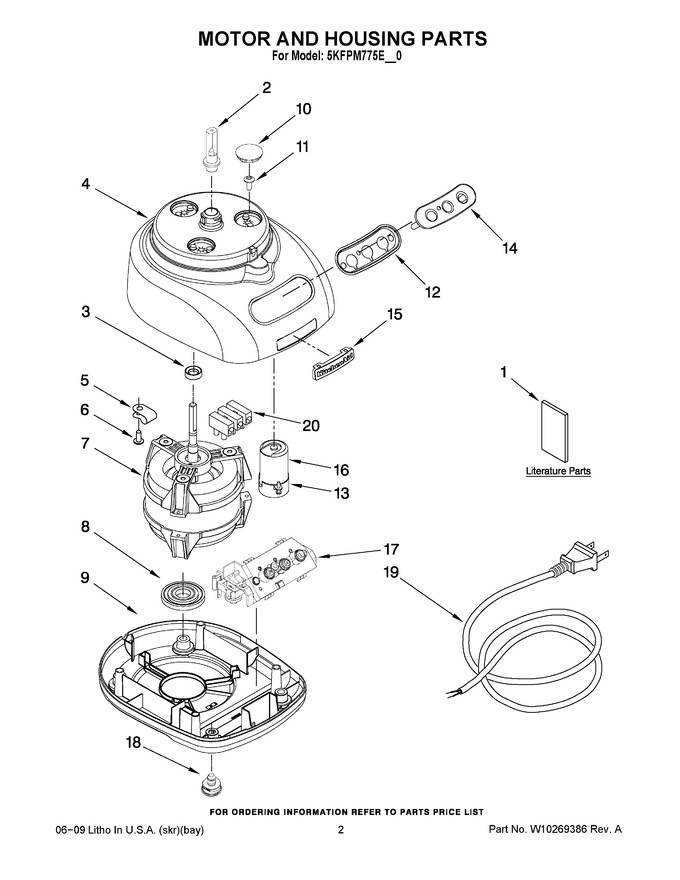

01 - Motor And Housing Parts


02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10274084		Use & Care Guide		Appelez-nous	-
1	W10269386		Repair Parts List		Appelez-nous	-
2	W10187053		Sleeve, Motor Shaft				$ 5.83
3	8211828		Seal, Oil				$ 33.19
4	W10275757		Housing, Motor (black)		Appelez-nous	-
4	8212069		Housing, Motor (empire Red)		Appelez-nous	-
4	W10221703		Housing, Motor (pearl Metallic)		Appelez-nous	-
4	8212070		Housing, Motor (almond Creme)		Appelez-nous	-
5	2185825		Clamp, Cable   (Replaces: 8211610)		Appelez-nous	-
6	8211835		Screw, Clamp		Appelez-nous	-
7	8212079		Motor		Appelez-nous	-
8	8212091		Grommet, Motor		Appelez-nous	-
9	W10275759		Base, Housing (almond Creme)		Appelez-nous	-
9	W10275760		Base, Housing (black)				$ 59.61
9	W10275758		Base, Housing (empire Red)				$ 51.66
10	W10275761		Cover, Screw (black)		Appelez-nous	-
10	8212086		Cover, Screw (almond Creme)		Appelez-nous	-
10	8212085		Cover, Screw (empire Red)		Appelez-nous	-
11	W10249231		Screw, Motor Locking		Appelez-nous	-
12	W10249232		Bezel, Switch Panel		Appelez-nous	-
13	8211607		Clip, Capacitor		Appelez-nous	-
14	8212088		Overlay W/cover		Appelez-nous	-
15	W10274085		Nameplate		Appelez-nous	-
16	8212089		Capacitor		Appelez-nous	-
17	8212090		Relay/switch Assy		Appelez-nous	-
18	8211844		Foot (white)		Appelez-nous	-
18	8211845		Foot (black)				$ 5.83
19	8212075		Cord, Power (black)		Appelez-nous	-
19	8212076		Cord, Power (white)		Appelez-nous	-
20	8211605		Block, Terminal		Appelez-nous	-
