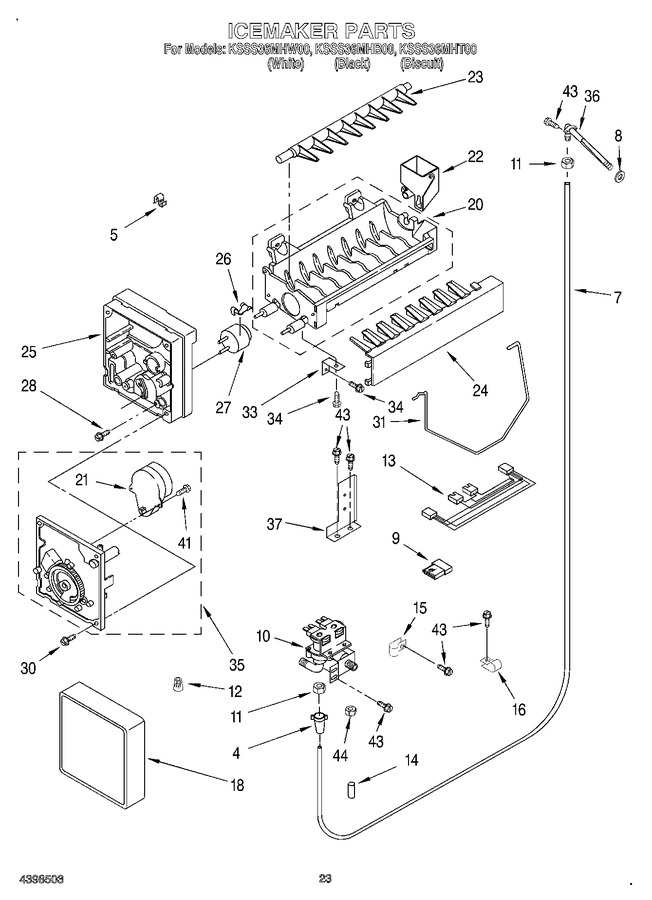

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 7 | W10823511 | Water Inlet Tube Assembly (Replaces: 2208933) |
|
Immediately | $ 32.41 | ||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | 2154472 | Connector |
|
- | |||||
| 10 | 2003791 | Valve, Solenoid |
|
- | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 10.97 | |||||
| 12 | 227991 | Connector Wire |
|
- | |||||
| 13 | 2006738 | Water Valve, Harness |
|
- | |||||
| 14 | 2005038 | Plug, Water Valve |
|
- | |||||
| 15 | 489348 | Clamp, Nylon Valve |
|
- | |||||
| 16 | 488946 | Clamp, Tube |
|
$ 20.45 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.40 | ||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 20 | WPW10190929 | Mold & Heater (also Order (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | 542639 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 60.20 | ||||
| 33 | WP2256087 | Bracket (Replaces: 2171952) |
|
$ 93.00 | |||||
| 34 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 35 | W10190935 | Module Assembly (includes Items 21 & 41) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 36 | 2185988 | Fitting, Water Tube |
|
- | |||||
| 37 | 2004914 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 44 | 1129179 | Compresion Nut |
|
- | |||||
| 100 | 978849 | Black Acrylic Static Cleaner |
|
$ 15.82 | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 188.95 | ||||
| 100 | 4392879 | Front Panel Kit (biscuit) |
|
- | |||||
| 100 | 4318638 | Front Panel Kit (almond) |
|
- | |||||
| 100 | 4318632 | Front Panel Kit (black) |
|
- | |||||
| 100 | 4318635 | Front Panel Kit (white) |
|
- | |||||
| 100 | 4318641 | Front Panel Kit (stainless Steel) |
|
- |
