SELECT A DIAGRAM

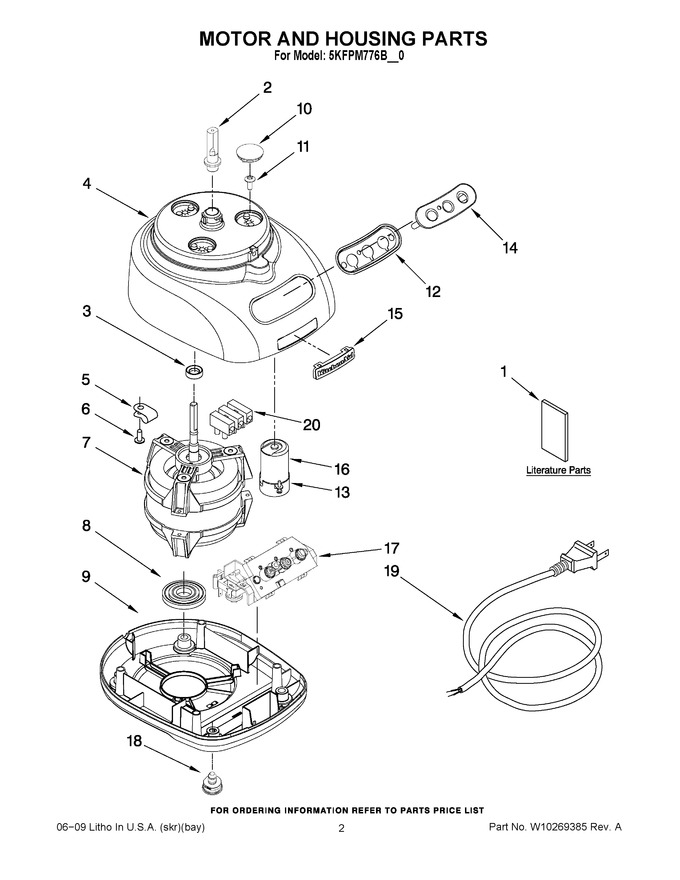

01 - Motor And Housing Parts


02 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10274084		Use & Care Guide		Appelez-nous	-
1	W10269385		Repair Parts List		Appelez-nous	-
2	W10187053		Sleeve, Motor Shaft				$ 5.83
3	8211828		Seal, Oil				$ 33.19
4	8211823		Housing, Motor		Appelez-nous	-
5	2185825		Clamp, Cable   (Replaces: 8211610)		Appelez-nous	-
6	8211835		Screw, Clamp		Appelez-nous	-
7	8212079		Motor		Appelez-nous	-
8	8212091		Grommet, Motor		Appelez-nous	-
9	W10275585		Base, Housing		Appelez-nous	-
10	8211827		Cover, Screw		Appelez-nous	-
11	W10249231		Screw, Motor Locking		Appelez-nous	-
12	8212095		Bezel, Switch Panel		Appelez-nous	-
13	8211607		Clip, Capacitor		Appelez-nous	-
14	8212087		Overlay W/cover		Appelez-nous	-
15	W10274085		Nameplate		Appelez-nous	-
16	8212089		Capacitor		Appelez-nous	-
17	8212090		Relay/switch Assy		Appelez-nous	-
18	8211845		Foot				$ 5.83
19	8212073		Cord, Power		Appelez-nous	-
20	8211605		Block, Terminal		Appelez-nous	-
